Главная Каталог продукции Toolunited 13 306-09 - Step drill for adjustable solid drill 3.37141R832

3.37141R832

3.37141R832 3.37141R832

3.37141R832

Kennametal
Артикул: 1191062
В наличии
В корзину
Описание
Характеристики
CCF Connection code form
01
CCONMS Connection count machine side
1
CCS Connection code style
5
CCT Connection code type
ZYL
CCU Connection code unit base
0
CEDC Cutting edge count
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
0 - Without coolant exit
CZC Connection size code
0140
DCINTF Interference cutting diameter
14 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
18.2 mm
Delivery state valid from
5/28/2017
DIN
ZYL03201305
FamilyProducts
METRIC BF BODY, SHANK B (WN)
HAND Cutting direction
R - Right
ID Technical product number
1191062
Interface codes
J6 /
ISYC Subclass
306-09 - Step drill for adjustable solid drill
LOC-01 BI Block index
1
LOC-01 CCF Connection code form
01
LOC-01 CCS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCT Connection code type
ZYL cylindrical shank
LOC-01 CCU Connection code unit base
0 Metric
LOC-01 CZC Connection size code
0140
LOC-01 MIID Master insert identification
3.41220..
LOC-01-Connection-codes
J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills
LOC-01-DIN
ZYL01400105
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201305

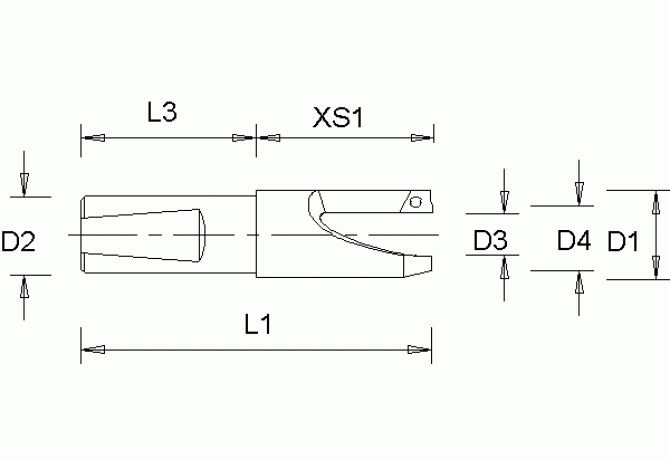

LPR Protruding length
68.25 mm
LS Shank length
60 mm
Name Identifying order number
3.37141R832
NUMBER INSERTS OUTSIDE Number of inserts outside
2
OAL Overall length
127.4 mm
SIG Point angle 1st step
90 Degree
Working process
No working processes available
