Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts V39 91800

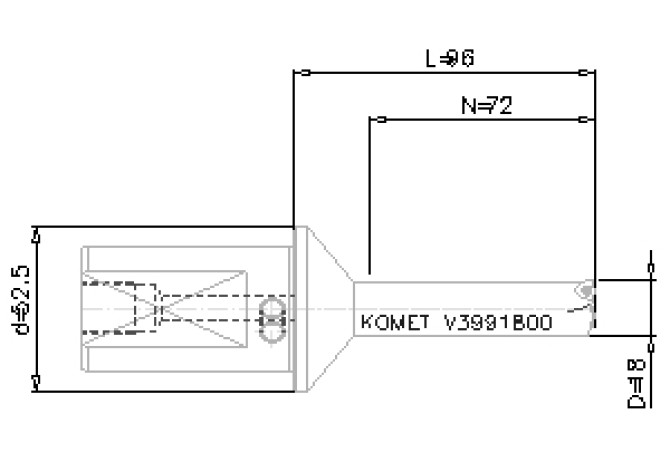

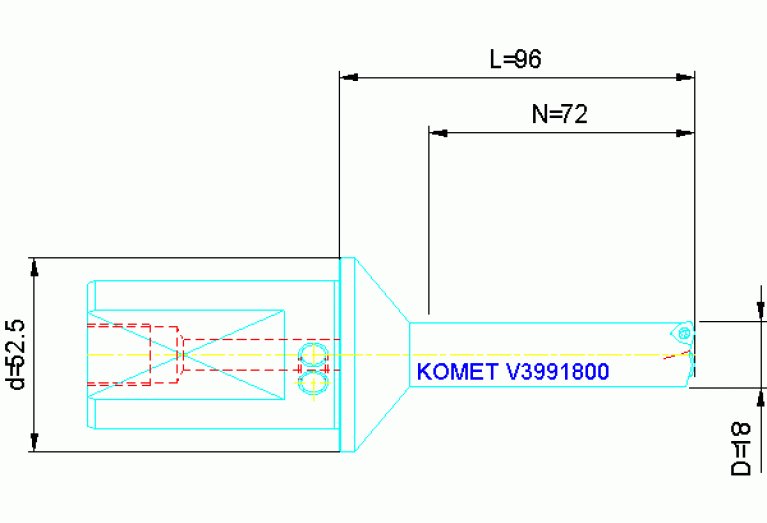

V39 91800

V39 91800 V39 91800 V39 91800

V39 91800

Komet Group
Артикул: 1481962
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
84 Degree
A1B Cutting edge angle major Pos. B
84 Degree
A2A Clearance angle major Pos. A
8 Degree
A2B Clearance angle major Pos. B
8 Degree
B1A Cutting edge length Pos. A
3.2 mm
B1B Cutting edge length Pos. B
3.2 mm
B3A Inscribed circle diameter Pos. A
2.3 mm
B3B Inscribed circle diameter Pos. B
2.3 mm
BLDA Tool style code Position A
7
BLDEV Balancing device
0
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D6A Wiper edge length Pos. A
0 mm
D6B Wiper edge length Pos. B
0 mm
DC Cutting diameter minimum
18 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
50 mm
DIN
ZYL04001015
FamilyProducts
KUB Trigon dia.18
HAND Cutting direction
R - Right
ID Technical product number
1481962
Interface codes
J6 /
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
76 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001015
LPR Protruding length
96 mm
LS Shank length
68 mm
LU Usable length
72 mm
Name Identifying order number
V39 91800
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
164 mm
SIG Point angle 1st step
180 Degree
Working process
BVB - Drilling
WT Weight of item
0.76 kg
