Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts V39 74000

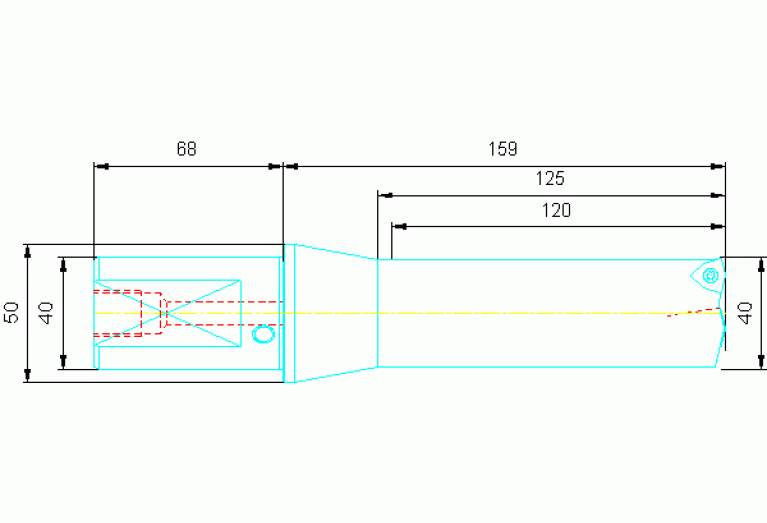

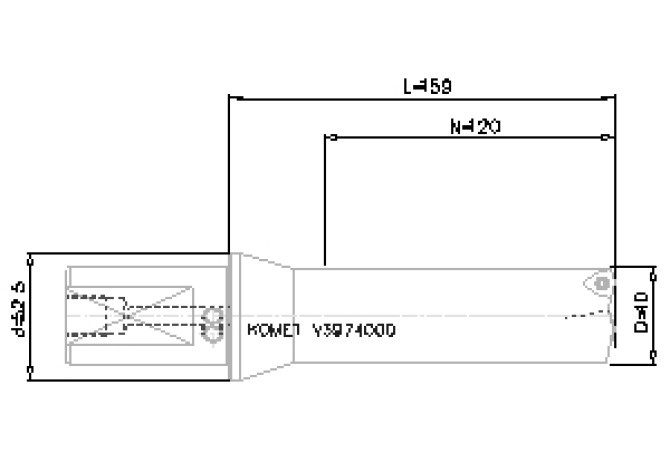

V39 74000

V39 74000 V39 74000 V39 74000

V39 74000

Komet Group
Артикул: 1482098
В наличии
В корзину
Описание
Характеристики
BLDEV Balancing device
0
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
50 mm
DIN
ZYL04001015
FamilyProducts
KUB Trigon dia.40
HAND Cutting direction
R - Right
ID Technical product number
1482098
Interface codes
J6 /
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
125 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001015
LPR Protruding length
159 mm
LS Shank length
68 mm
LU Usable length
120 mm
Name Identifying order number
V39 74000
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
227 mm
SIG Point angle 1st step
180 Degree
Working process
BVB - Drilling
WT Weight of item
1.43 kg
