Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts V38 71500

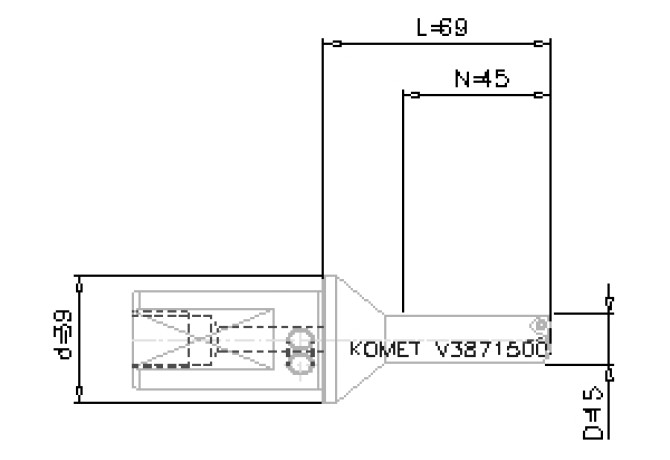

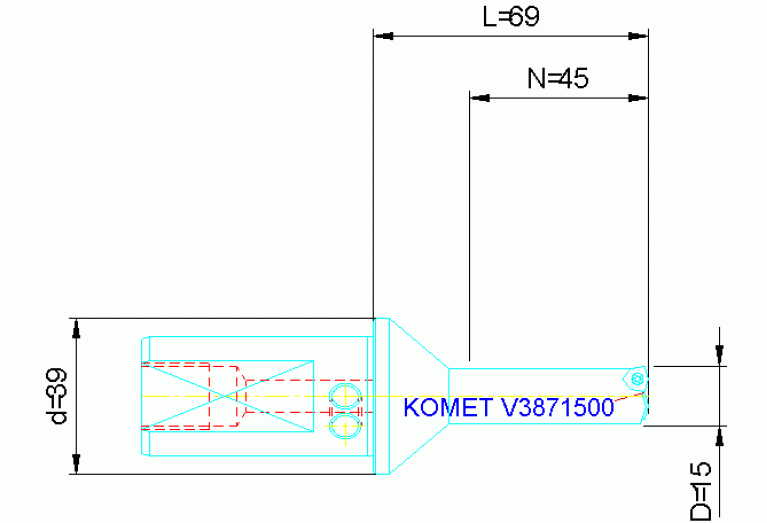

V38 71500

V38 71500 V38 71500 V38 71500

V38 71500

Komet Group
Артикул: 1481906
В наличии
В корзину
Описание
Характеристики
BLDEV Balancing device
0
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
15 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
40 mm
DIN
ZYL03000115
FamilyProducts
KUB Trigon 999
HAND Cutting direction
R - Right
ID Technical product number
1481906
Interface codes
J6 /
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
45 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0300
LOC-03 DCONMS Diameter
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03000115
LPR Protruding length
69 mm
LS Shank length
58 mm
LU Usable length
45 mm
Name Identifying order number
V38 71500
OAL Overall length
127 mm
SIG Point angle 1st step
180 Degree
Working process
BVB - Drilling
WT Weight of item
0.38 kg
