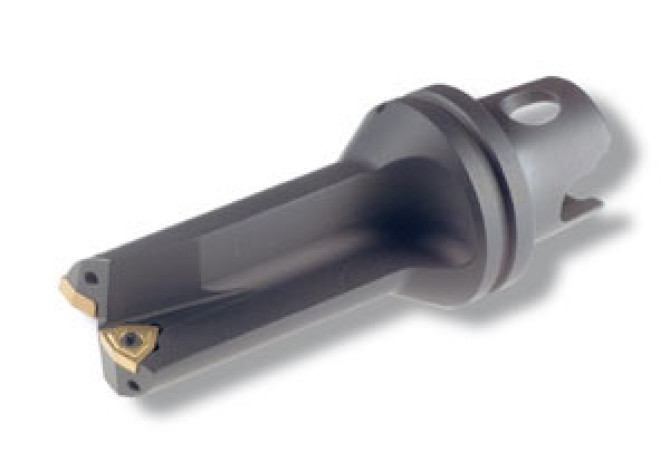

UT40-2D-340-R06

UT40-2D-340-R06 UT40-2D-340-R06

UT40-2D-340-R06

Ceratizit
Артикул: UT40-2D-340-R06
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
84 Degree
A2A Clearance angle major Pos. A
8 Degree
BLDA Tool style code Position A
7
BLDB Tool style code Position B
99
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle
DC Cutting diameter minimum
34 mm
DCP Data chip provision
0 - Without data chip
DF Flange diameter
40 mm
DIN
UTS04000115
FamilyProducts
Maxiflex UTS indexable insert drill
GEP Guide element property
0 - Without guide elements
HAND Cutting direction
R - Right
ID Technical product number
UT40-2D-340-R06
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
306-01 - Twist drill for indexable inserts
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
UTS Widaflex connection WIDIA
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
UTS04000115
LPR Protruding length
90 mm
LU Usable length
70 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
UT40-2D-340-R06
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
115 mm
SIG Point angle 1st step
156 Degree
Working process
BVB - Drilling
