Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts U22 93000

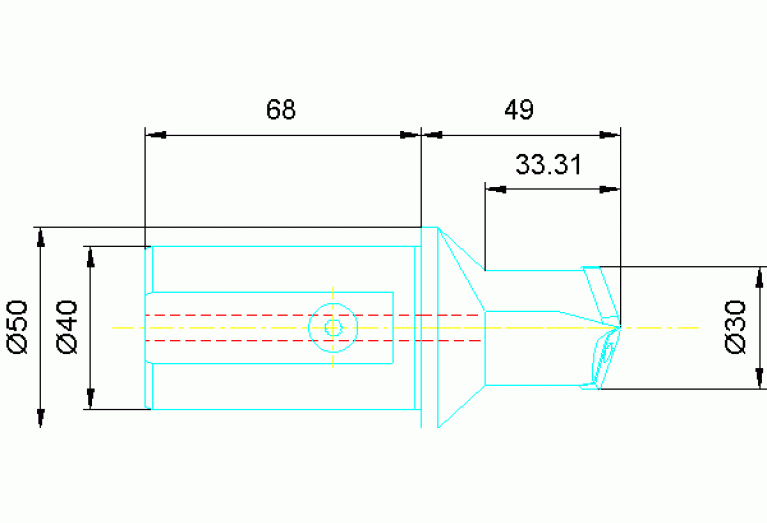

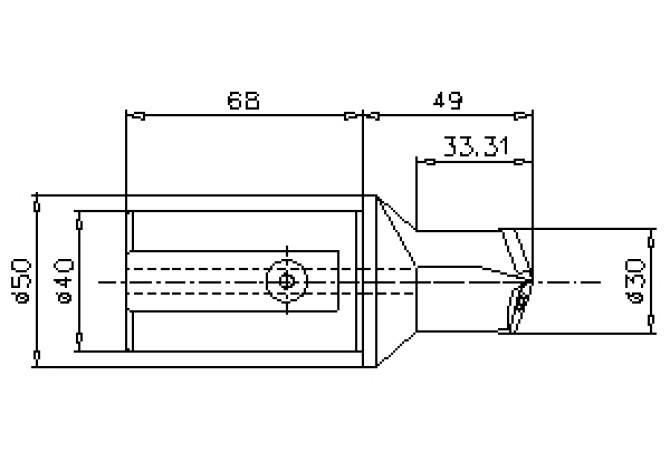

U22 93000

U22 93000 U22 93000 U22 93000

U22 93000

Komet Group
Артикул: 1496611
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
99
BLDEV Balancing device
0
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CEDC Cutting edge count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
30 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
50 mm
DIN
ZYL04001315
FamilyProducts
KUB Duon dia.29,8-36,2
FDC Flute design code
1 - Straight
HAND Cutting direction
R - Right
ID Technical product number
1496611
Interface codes
J6 /
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
33.31 mm
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001315
LPR Protruding length
49 mm
LU Usable length
33.31 mm
Name Identifying order number
U22 93000
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
117 mm
SIG Point angle 1st step
140 Degree
STDNO Standard
DIN6535HE+DIN6595
Working process
BAB - Open by boring,BVB - Drilling
