Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts U20 82700

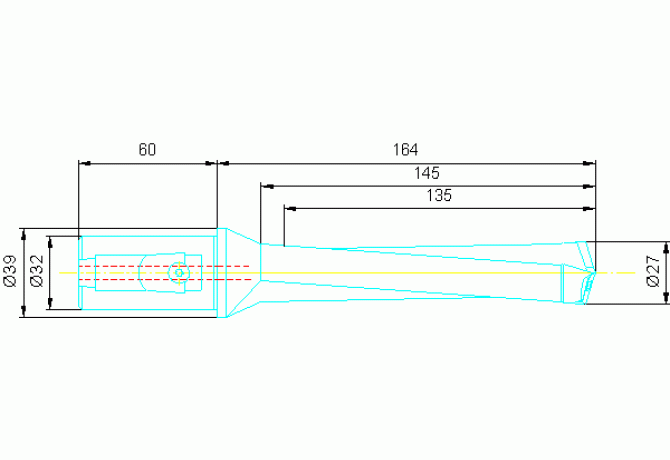

U20 82700

U20 82700 U20 82700

U20 82700

Komet Group
Артикул: 1490050
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
99
BLDEV Balancing device
0
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CEDC Cutting edge count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
27 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DF Flange diameter
39 mm
DIN
ZYL03201315
FamilyProducts
KUB Duon dia.26,8-27,2
FDC Flute design code
1 - Straight
HAND Cutting direction
R - Right
ID Technical product number
1490050
Interface codes
J6 /
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
145 mm
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201315
LPR Protruding length
164 mm
LU Usable length
135 mm
Name Identifying order number
U20 82700
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
224 mm
SIG Point angle 1st step
140 Degree
STDNO Standard
DIN6535HE+DIN6595
Working process
BAB - Open by boring,BVB - Drilling
WT Weight of item
0.74 kg
