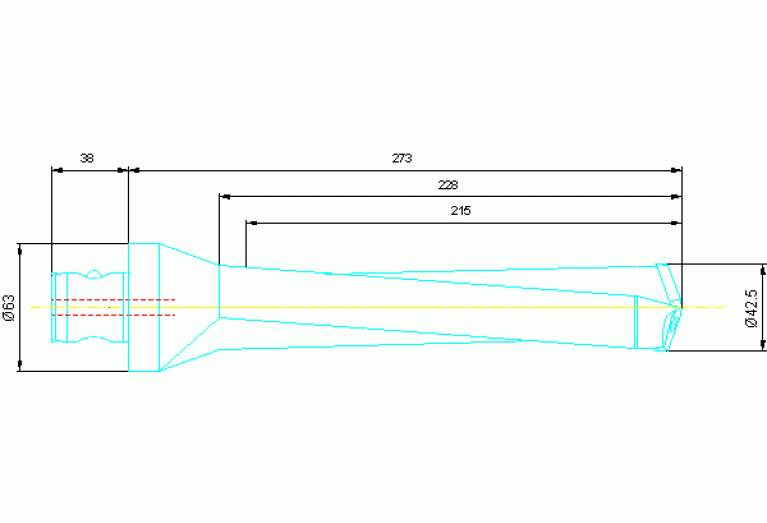

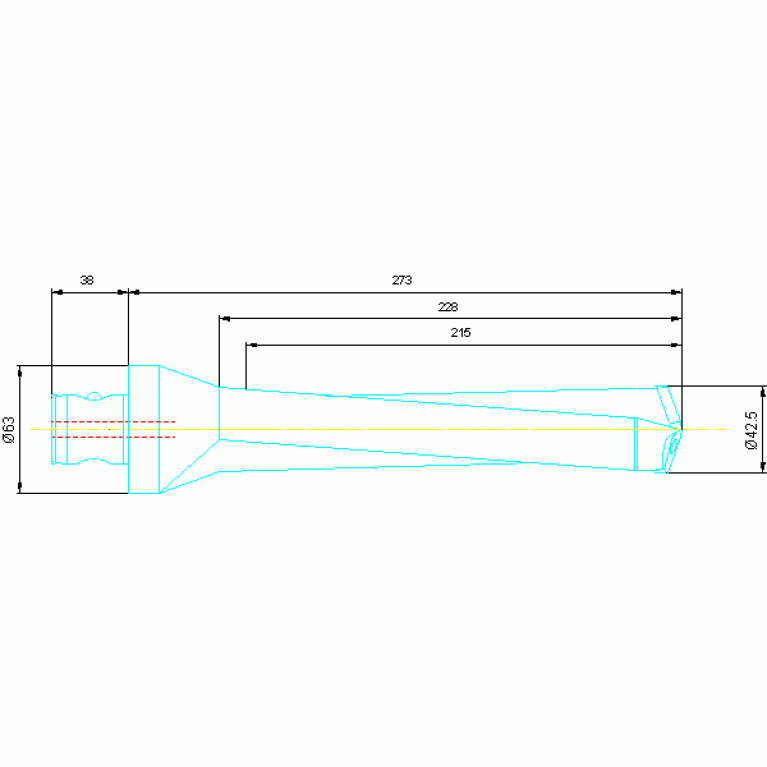

Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts U20 14250

U20 14250

U20 14250

Komet Group

Артикул: 1496038

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

99

BLDEV Balancing device

0

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

1

CEDC Cutting edge count

2

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

42.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DIN

ABS06300115

FamilyProducts

KUB Duon dia.42,3-42,7

FDC Flute design code

1 - Straight

HAND Cutting direction

R - Right

ID Technical product number

1496038

Interface codes

J6 /

ISYC Subclass

306-01 - Twist drill for indexable inserts

LCF Length chip flute

228 mm

LF Functional length

273 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ABS KOMET ABS connection

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ABS06300115

LPR Protruding length

273 mm

LU Usable length

215 mm

Name Identifying order number

U20 14250

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

311 mm

SIG Point angle 1st step

140 Degree

Working process

BAB - Open by boring,BVB - Drilling

WT Weight of item

2.17 kg
