Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts U20 03550

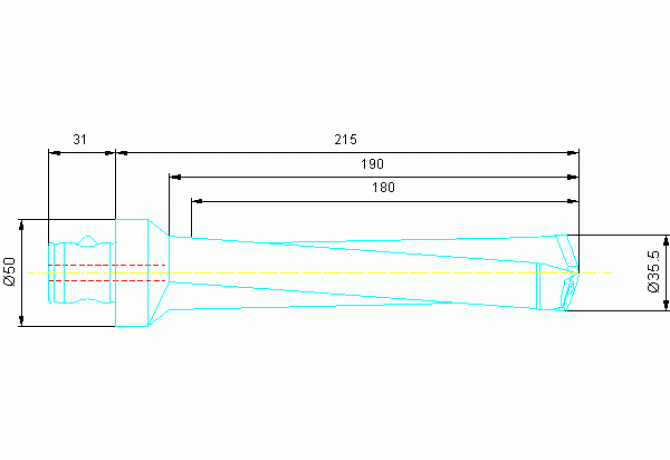

U20 03550

U20 03550 U20 03550

U20 03550

Komet Group
Артикул: 1488094
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
99
BLDEV Balancing device
0
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CEDC Cutting edge count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
35.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2012
DIN
ABS05000115
FamilyProducts
KUB Duon dia.35,3-35,7
FDC Flute design code
1 - Straight
HAND Cutting direction
R - Right
ID Technical product number
1488094
Interface codes
J6 /
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
190 mm
LF Functional length
215 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ABS KOMET ABS connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ABS05000115
LPR Protruding length
215 mm
LU Usable length
180 mm
Name Identifying order number
U20 03550
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
246 mm
SIG Point angle 1st step
140 Degree
Working process
BAB - Open by boring,BVB - Drilling
WT Weight of item
0.9 kg
