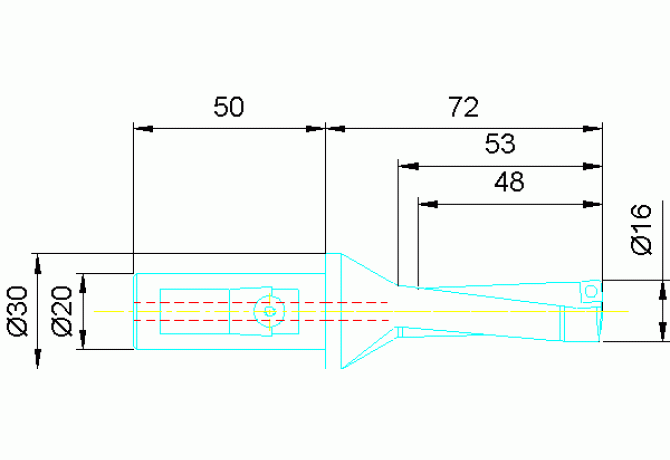

Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts U11 61600

U11 61600

U11 61600

Komet Group

Артикул: 1488594

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

8 Degree

A2B Clearance angle major Pos. B

8 Degree

B1A Cutting edge length Pos. A

5.56 mm

B1B Cutting edge length Pos. B

5.56 mm

B3A Inscribed circle diameter Pos. A

2.38 mm

B3B Inscribed circle diameter Pos. B

2.38 mm

BLDA Tool style code Position A

2

BLDB Tool style code Position B

2

BLDEV Balancing device

0

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

1

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

16 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DF Flange diameter

30 mm

DIN

ZYL02001315

FamilyProducts

KUB Quatron dia.16,0

HAND Cutting direction

R - Right

ID Technical product number

1488594

Interface codes

J6 /

ISYC Subclass

306-01 - Twist drill for indexable inserts

LCF Length chip flute

53 mm

LOC-03 CCFMS Connection code form

13

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001315

LPR Protruding length

72 mm

LU Usable length

48 mm

MTP Clamping type code 1st step

S - Screwed on across the bore, with counter bore

Name Identifying order number

U11 61600

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

122 mm

SIG Point angle 1st step

180 Degree

STDNO Standard

DIN6535HE+DIN6595

Working process

No working processes available

WT Weight of item

0.2 kg
