Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts U10 84800

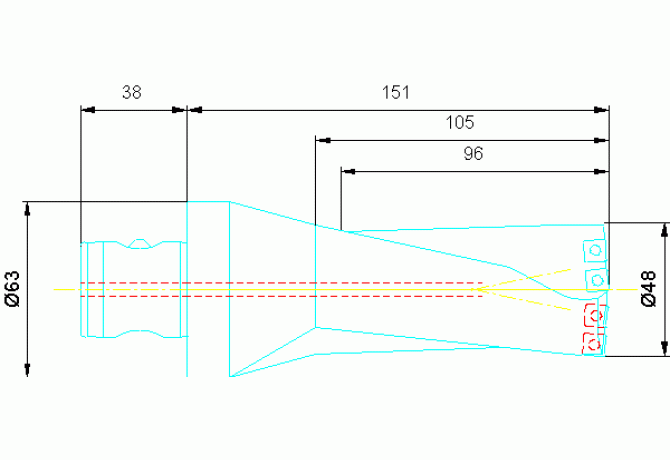

U10 84800

U10 84800

Komet Group

Артикул: 1490797

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

8 Degree

A2B Clearance angle major Pos. B

8 Degree

B1A Cutting edge length Pos. A

7.94 mm

B1B Cutting edge length Pos. B

7.94 mm

B3A Inscribed circle diameter Pos. A

3.58 mm

B3B Inscribed circle diameter Pos. B

3.58 mm

BLDA Tool style code Position A

2

BLDB Tool style code Position B

2

BLDEV Balancing device

0

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

1

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KOG - Komet Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

D1B Corner radius Pos. B

0.8 mm

DC Cutting diameter minimum

48 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/24/2012

DIN

ABS06300115

FamilyProducts

KUB Quatron dia.48,0

HAND Cutting direction

R - Right

ID Technical product number

1490797

Interface codes

J6 /

ISYC Subclass

306-01 - Twist drill for indexable inserts

LCF Length chip flute

105 mm

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

SOEX07T308

LOC-01 MTP Clamping type code 1st step

S Screwed on across the bore, with counter bore

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

66930

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

SOEX07T308

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

66930

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ABS KOMET ABS connection

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ABS06300115

LPR Protruding length

151 mm

LU Usable length

96 mm

MIID Master insert identification

SOEX07T308

MTP Clamping type code 1st step

S

Name Identifying order number

U10 84800

NUMBER INSERTS INSIDE Number of inserts inside

3

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

189 mm

SIG Point angle 1st step

180 Degree

Working process

BVB - Drilling

WT Weight of item

1.6 kg

Номер таблицы (BI) / Block index (BI)

1
