Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts TAFM3100F32

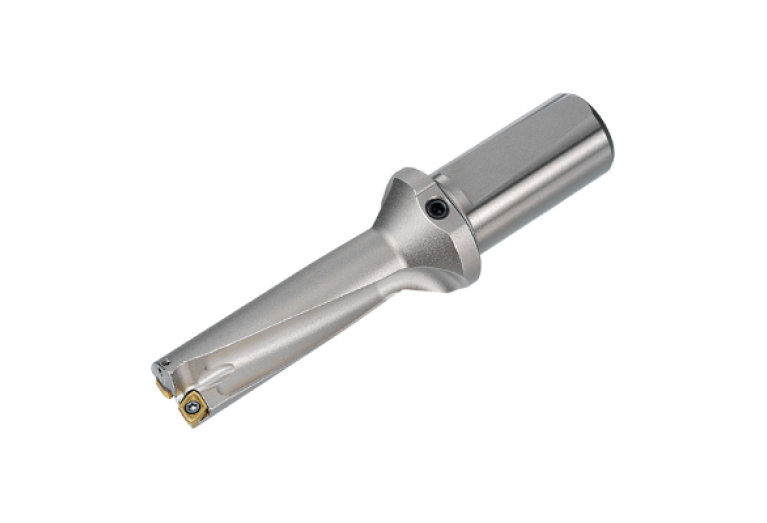

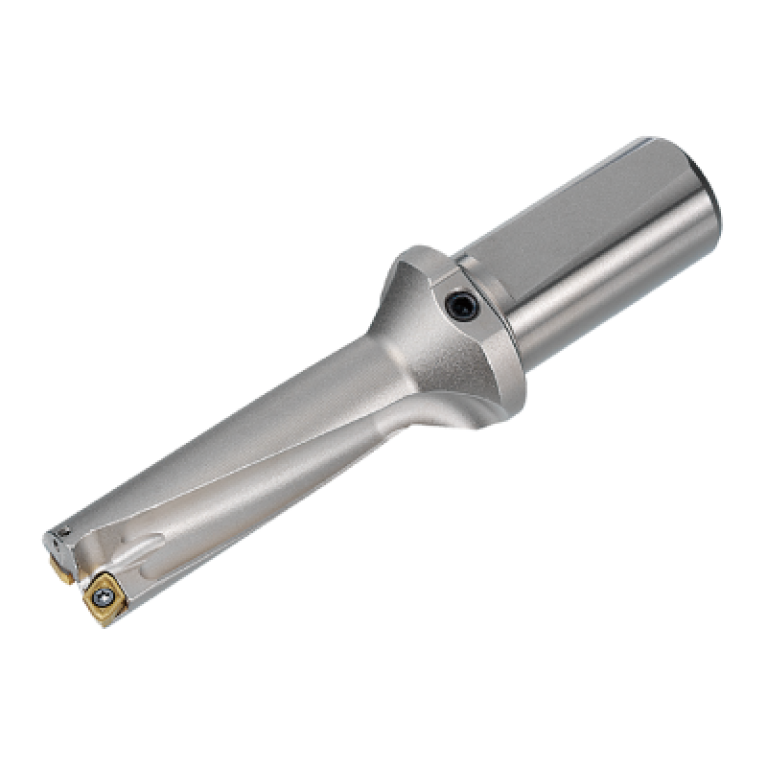

TAFM3100F32

TAFM3100F32 TAFM3100F32 TAFM3100F32 TAFM3100F32

TAFM3100F32

Mitsubishi Materials
Артикул: 212783
В наличии
В корзину
Описание
Характеристики

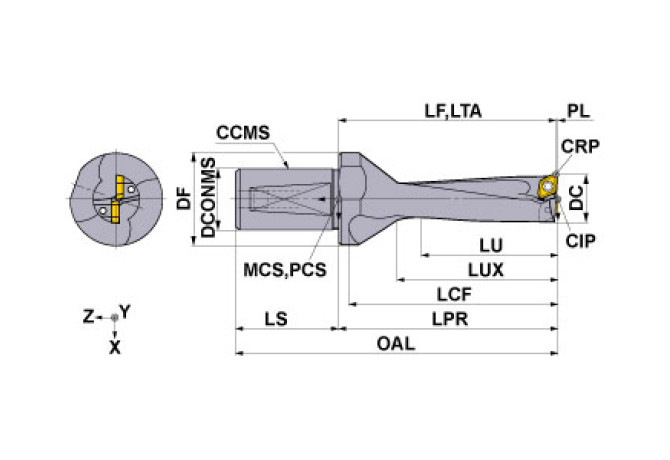

BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
CCONMS Connection count machine side
1
CEDC Cutting edge count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle
DC Cutting diameter minimum
31 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL03200115
FamilyProducts
drilling
HAND Cutting direction
R - Right
ID Technical product number
212783
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
105 mm
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
GPMT11T308-U1
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
MI-GPMT11T308
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03200115

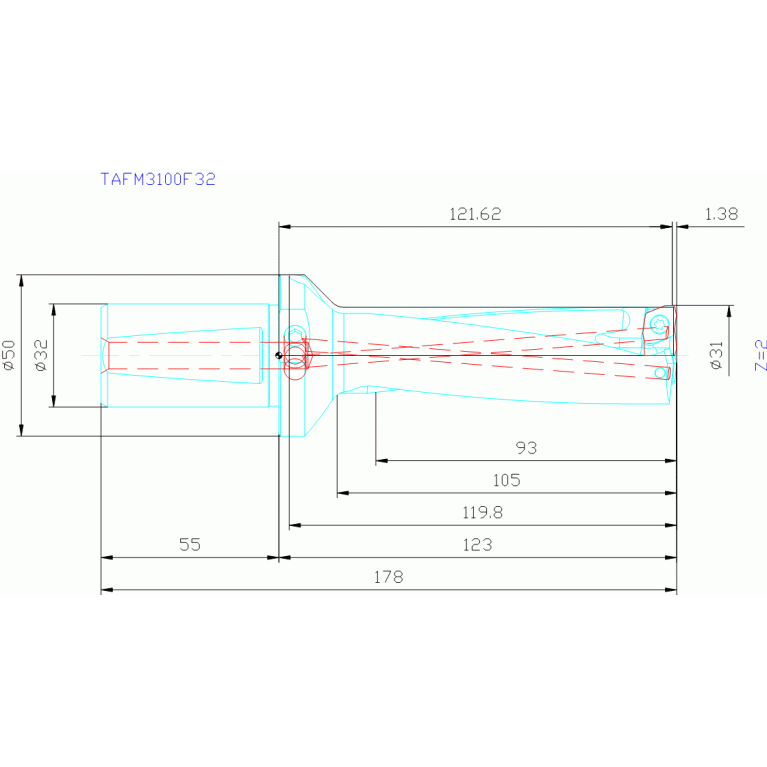

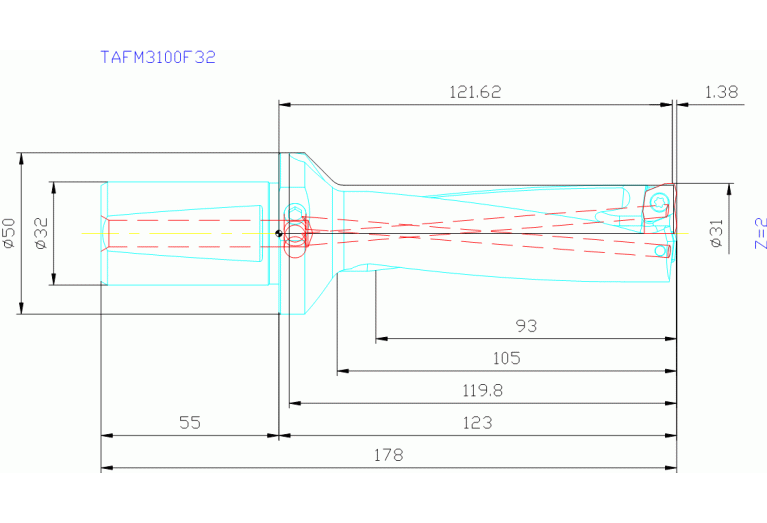

LPR Protruding length
123 mm
LS Shank length
55 mm
LU Usable length
93 mm
Name Identifying order number
TAFM3100F32
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
2
OAL Overall length
178 mm
Working process
No working processes available
