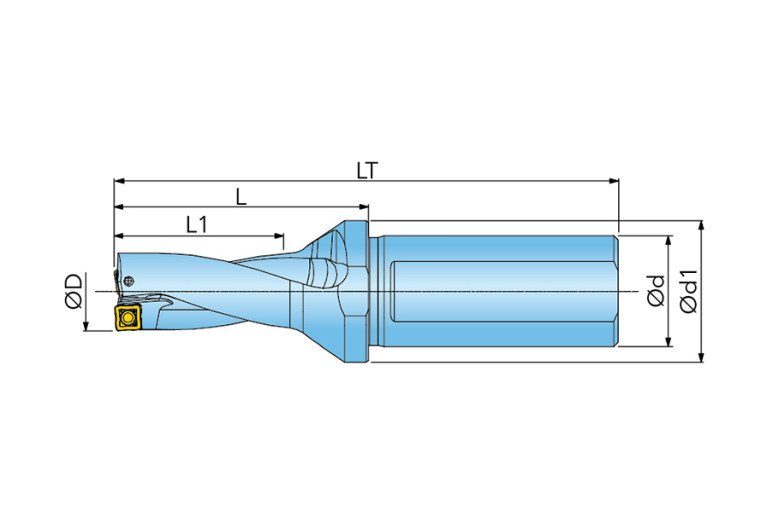

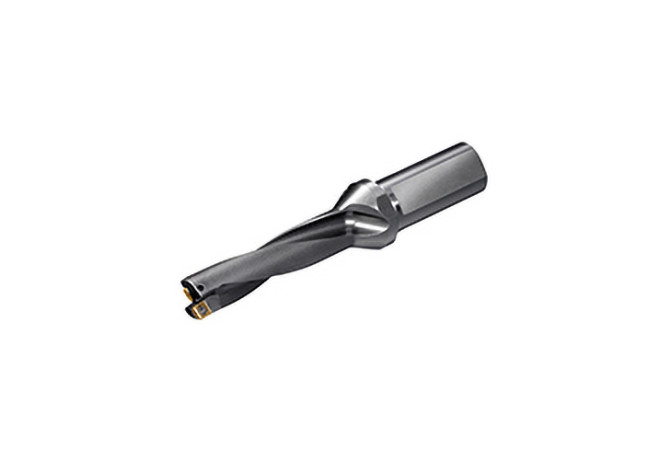

Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts QR0460092JHR00

QR0460092JHR00

QR0460092JHR00 QR0460092JHR00 QR0460092JHR00 QR0460092JHR00

QR0460092JHR00

Ingersoll
Артикул: 6102617
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
CCONMS Connection count machine side
1
CEDC Cutting edge count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
46 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LL - Stock limited
DF Flange diameter
60 mm
DIN
ZYL04001115
FamilyProducts
Indexable Drill 2D Ø27 - Ø50
FHH Flute helix hand
R - Hand of helix right
GEP Guide element property
0 - Without guide elements
HAND Cutting direction
R - Right
ID Technical product number
6102617
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
306-01 - Twist drill for indexable inserts
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001115
LPR Protruding length
127 mm
LU Usable length
92 mm
MTP Clamping type code 1st step
X - Special design, all types
Name Identifying order number
QR0460092JHR00
NOF Flute count
2
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1

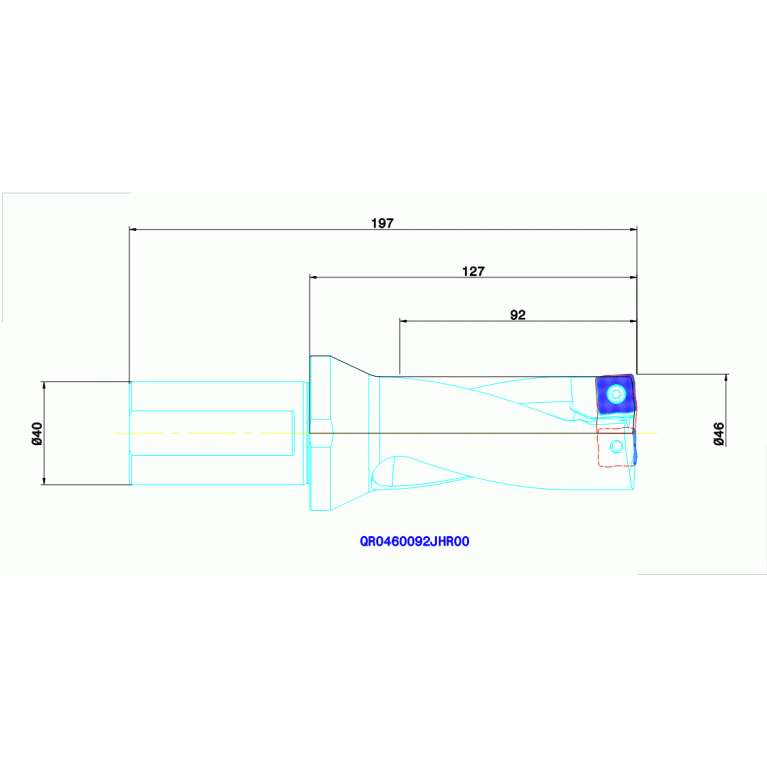

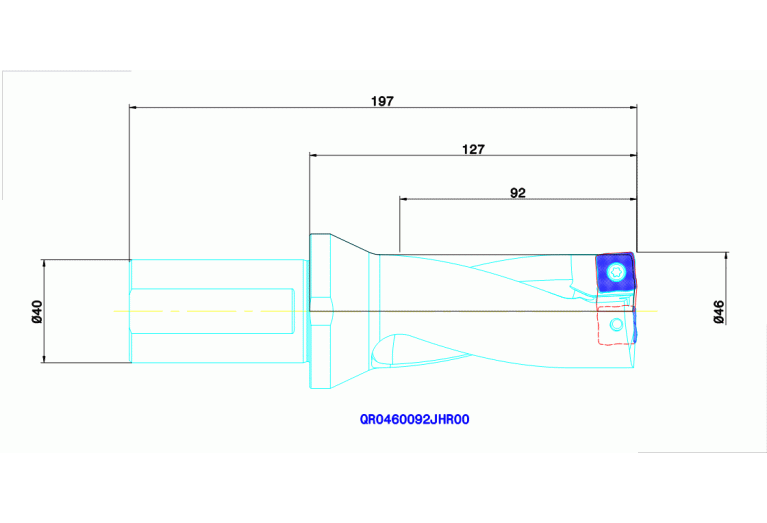

OAL Overall length
197 mm
SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
WT Weight of item
1.71 kg
