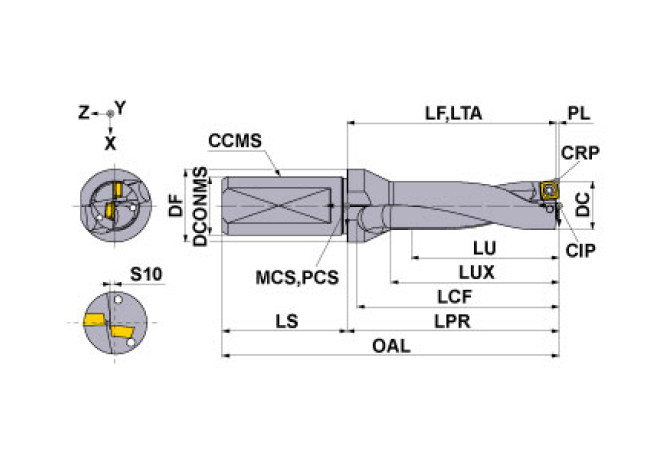

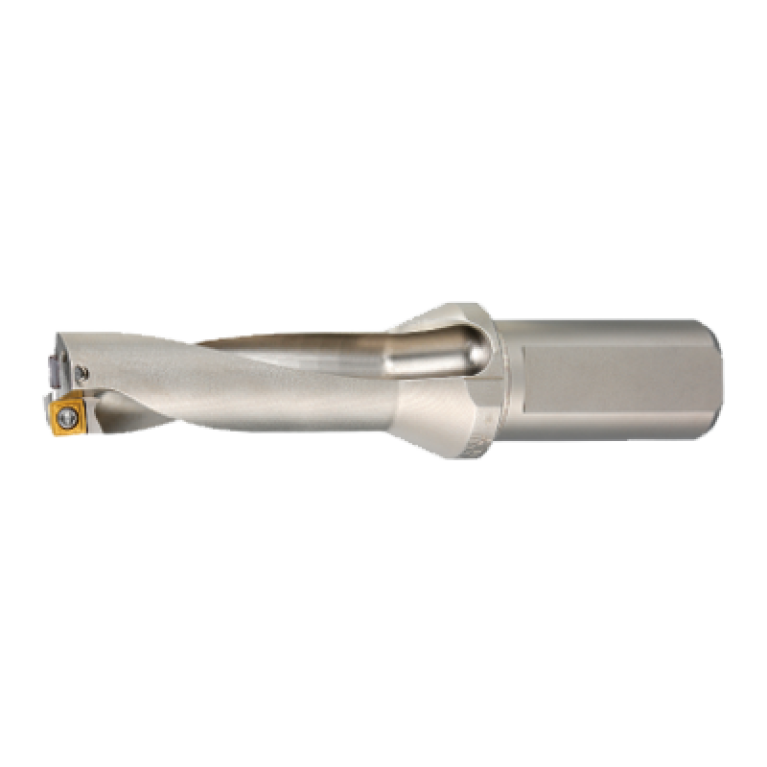

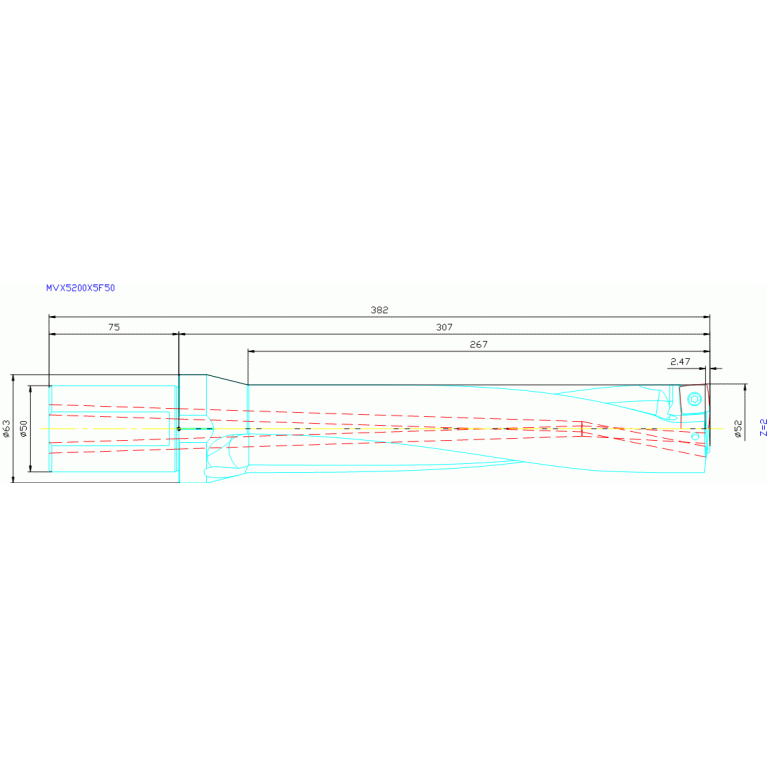

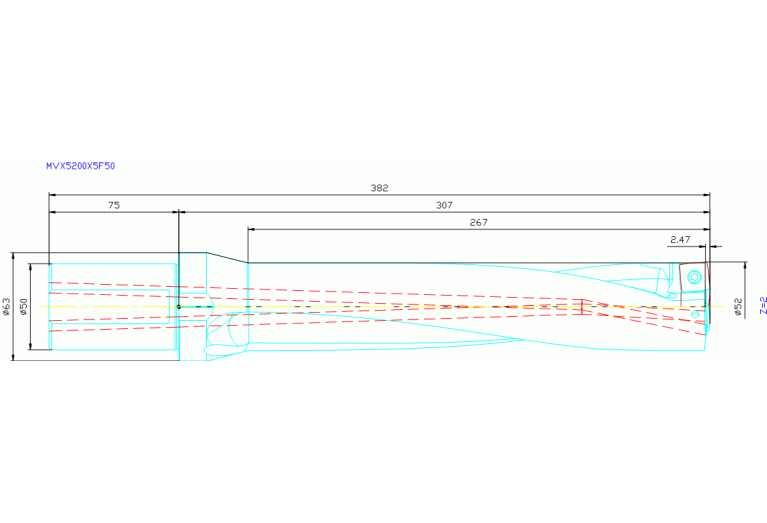

Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts MVX5200X5F50

MVX5200X5F50

MVX5200X5F50

Mitsubishi Materials

Артикул: 833758

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

11 Degree

A2B Clearance angle major Pos. B

11 Degree

B1A Cutting edge length Pos. A

16.5 mm

B1B Cutting edge length Pos. B

16.5 mm

B3A Inscribed circle diameter Pos. A

16.5 mm

B3B Inscribed circle diameter Pos. B

16.5 mm

BLDA Tool style code Position A

2

BLDB Tool style code Position B

2

C1A Insert thickness Pos. A

6.5 mm

C1B Insert thickness Pos. B

6.5 mm

CCONMS Connection count machine side

1

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

D1A Corner radius Pos. A

0.8 mm

D1B Corner radius Pos. B

0.8 mm

DC Cutting diameter minimum

52 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

ZYL05000115

FamilyProducts

drilling

HAND Cutting direction

R - Right

ID Technical product number

833758

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISISO B Indicator for ISO cutting plate Pos.B

0

ISYC Subclass

306-01 - Twist drill for indexable inserts

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05000115

LPR Protruding length

307 mm

LS Shank length

75 mm

LU Usable length

260 mm

Name Identifying order number

MVX5200X5F50

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

382 mm

Working process

No working processes available
