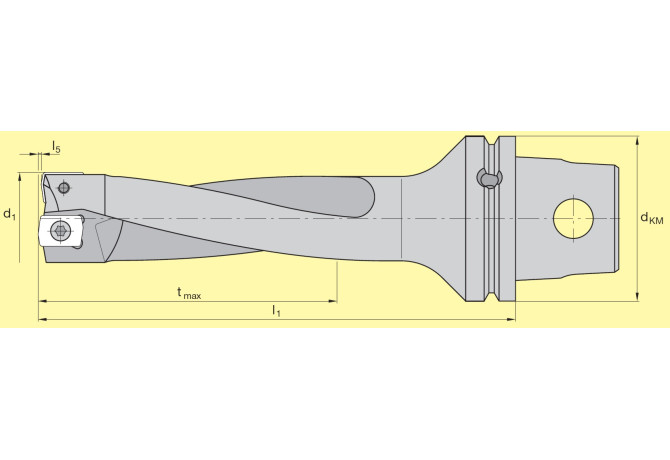

KM63XMZDFR220R3YM

Артикул: KM63XMZDFR220R3YM

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KH - Kennametal

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

22 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

23 mm

Delivery state valid from

DIN

KMT06300195

FamilyProducts

Drills with inserts DRILL-FIX DFR

FDC Flute design code

2 - Unequal helix

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

306-01 - Twist drill for indexable inserts

LOC-01 BI Block index

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

KH-WPB DFR0403

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

KH-WPB DFR0403

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KMT KM connection KENNAMETAL / UTS connection WIDIA

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KMT06300195

LPR Protruding length

101 mm

LU Usable length

66 mm

Name Identifying order number

KM63XMZDFR220R3YM

PL Point length

0.5 mm

Working process

BVB - Drilling

Наличие погрешности (ADJBY) / Adjustment property (ADJBY)

1 - Radial adjustment possible

Номер таблицы (BI) / Block index (BI)
