Главная Каталог продукции СЗЦПК инструмент 13 306-01 - Twist drill for indexable inserts DZ024-072-32-05

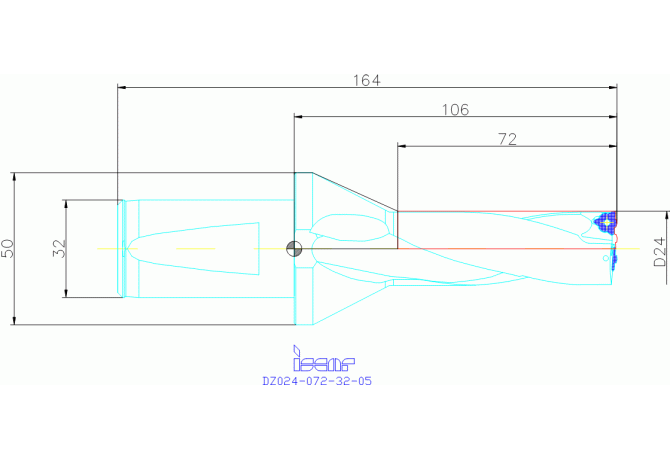

DZ024-072-32-05

DZ024-072-32-05

DZ024-072-32-05

DZ024-072-32-05

DZ024-072-32-05

Iscar

Артикул: 3200167

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

80 Degree

A1B Cutting edge angle major Pos. B

80 Degree

B1A Cutting edge length Pos. A

5 mm

B1B Cutting edge length Pos. B

5 mm

B3A Inscribed circle diameter Pos. A

8 mm

B3B Inscribed circle diameter Pos. B

8 mm

BLDA Tool style code Position A

7

BLDB Tool style code Position B

7

C1A Insert thickness Pos. A

3.81 mm

C1B Insert thickness Pos. B

3.81 mm

CCONMS Connection count machine side

1

CEDC Cutting edge count

1

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.4 mm

D1B Corner radius Pos. B

0.4 mm

DC Cutting diameter minimum

24 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/1/2012

DIN

ZYL03200105

FamilyProducts

Bohrer, Durchm. 23-38mm, für Wendeschneidplatten W

HAND Cutting direction

R - Right

ID Technical product number

3200167

Interface codes

J6 /

ISYC Subclass

306-01 - Twist drill for indexable inserts

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03200105

LPR Protruding length

106 mm

LS Shank length

58 mm

LU Usable length

72 mm

MTP Clamping type code 1st step

S - Screwed on across the bore, with counter bore

Name Identifying order number

DZ024-072-32-05

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

164 mm

SIG Point angle 1st step

140 Degree

Working process

No working processes available

Наличие погрешности (ADJBY) / Adjustment property (ADJBY)

0 - Adjustment not possible
