Главная Каталог продукции СЗЦПК инструмент 13 306-01 - Twist drill for indexable inserts DR330-132-32-12-4D-T

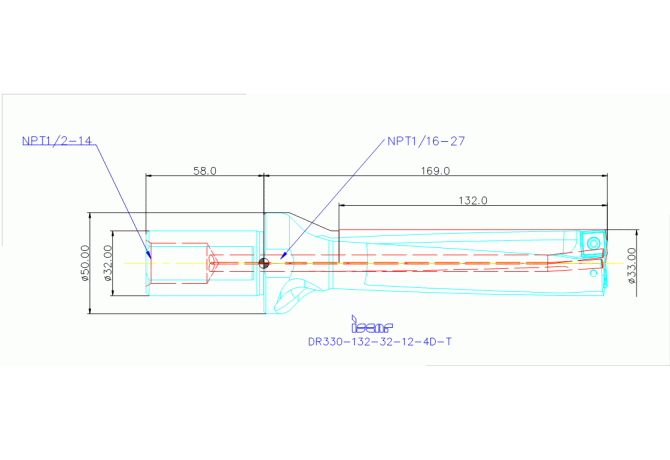

DR330-132-32-12-4D-T

DR330-132-32-12-4D-T DR330-132-32-12-4D-T

DR330-132-32-12-4D-T

Iscar
Артикул: 3202908
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
B1A Cutting edge length Pos. A
12.7 mm
B1B Cutting edge length Pos. B
12.7 mm
B3A Inscribed circle diameter Pos. A
12.7 mm
B3B Inscribed circle diameter Pos. B
12.7 mm
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
4.76 mm
C1B Insert thickness Pos. B
4.76 mm
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
4 - With Coolant entry, axial on hole circle
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter minimum
33 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
34.9 mm
Delivery state valid from
9/11/2017
DF Flange diameter
50 mm
DIN
ZYL03201115
FamilyProducts
DR330-132-32-12-4D-T
HAND Cutting direction
R - Right
ID Technical product number
3202908
Interface codes
J6 / J61
ISO
ZYL11G3200h$06
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
132 mm
LENGTH BOND Length bond
35 mm
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL11G3200h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201115
LPR Protruding length
169 mm
LS Shank length
58 mm
LU Usable length
132 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
DR330-132-32-12-4D-T
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
227 mm
PL Point length
0.99 mm
SIG Point angle 1st step
172 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BAB - Open by boring,BVB - Drilling
WT Weight of item
4.7 kg
Наличие погрешности (ADJBY) / Adjustment property (ADJBY)
0 - Adjustment not possible
