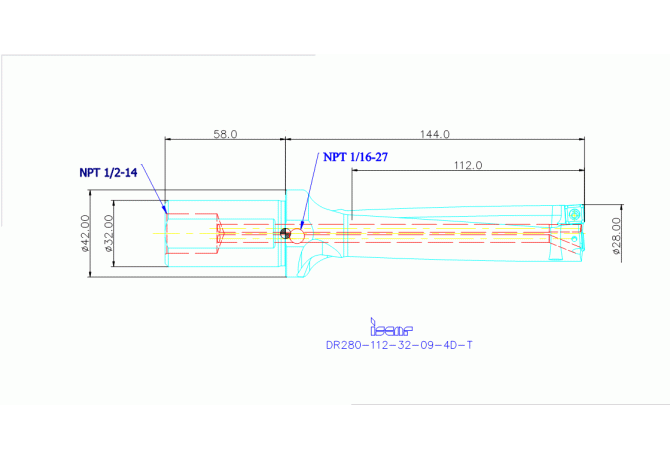

DR280-112-32-09-4D-T

Артикул: 3202330

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CEDC Cutting edge count

CNSC Coolant entry style code

4 - With Coolant entry, axial on hole circle

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

30.9 mm

DIN

ZYL03201115

FamilyProducts

Indexable Insert Drills for Non-Rotating Applications with Coolant Holes and One Flat Shank, Drilling Depth 4xD

ID Technical product number

3202330

Interface codes

J6 / J61

ISO

ZYL11G3200h$06

ISYC Subclass

306-01 - Twist drill for indexable inserts

LF Functional length

143.16 mm

LOC-01 BI Block index

LOC-01 ISO

IS$$656206809587014

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

IS-656206809587014

LOC-02 BI Block index

LOC-02 ISO

IS$$697954365920532

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

IS-697954365920532

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL11G3200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201115

LPR Protruding length

144 mm

LS Shank length

58 mm

LU Usable length

112 mm

Name Identifying order number

DR280-112-32-09-4D-T

OAL Overall length

202 mm

PL Point length

0.84 mm

SIG Point angle 1st step

172 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.7 kg
