Главная Каталог продукции СЗЦПК инструмент 13 306-01 - Twist drill for indexable inserts B4213.UL38.540.Z1.162R-8

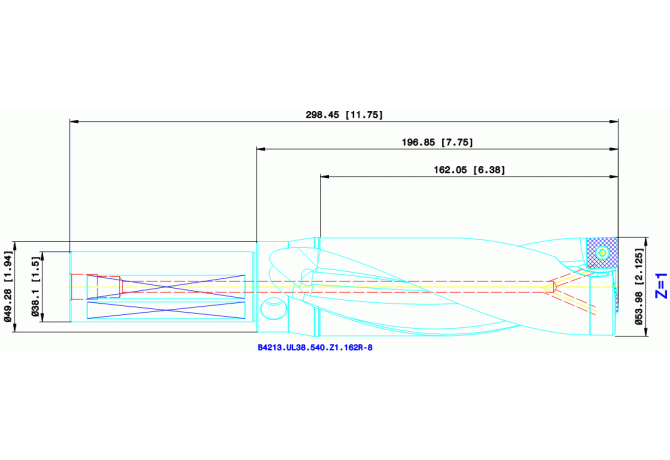

B4213.UL38.540.Z1.162R-8

B4213.UL38.540.Z1.162R-8

B4213.UL38.540.Z1.162R-8

B4213.UL38.540.Z1.162R-8

B4213.UL38.540.Z1.162R-8

Walter

Артикул: 6312679

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

2

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter minimum

53.975 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL15002435

FamilyProducts

Insert drills B4213

FHA Flute helix angle

22 Degree

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

6312679

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

0

ISISO B Indicator for ISO cutting plate Pos.B

0

ISO

ZYL24S1500$$$$

ISYC Subclass

306-01 - Twist drill for indexable inserts

LCF Length chip flute

190 mm

LF Functional length

196.25 mm

LOC-03 CCFMS Form

24

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

1500

LOC-03 DCONMS Diameter

38.1 mm

LOC-03 ISO

ZYL24S1500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL15002435

LPR Protruding length

196.85 mm

LS Shank length

101.6 mm

LU Usable length

162 mm

MTP Clamping type code 1st step

S - Screwed on across the bore, with counter bore

Name Identifying order number

B4213.UL38.540.Z1.162R-8

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

298.45 mm

PL Point length

0.6 mm

RPMX Rotational speed maximum

2900 1/min

SIG Point angle 1st step

176 Degree

Working process

BVB - Drilling

WT Weight of item

2.696 kg
