Главная Каталог продукции СЗЦПК инструмент 13 306-01 - Twist drill for indexable inserts B4213.UL26.167.Z1.050R-2

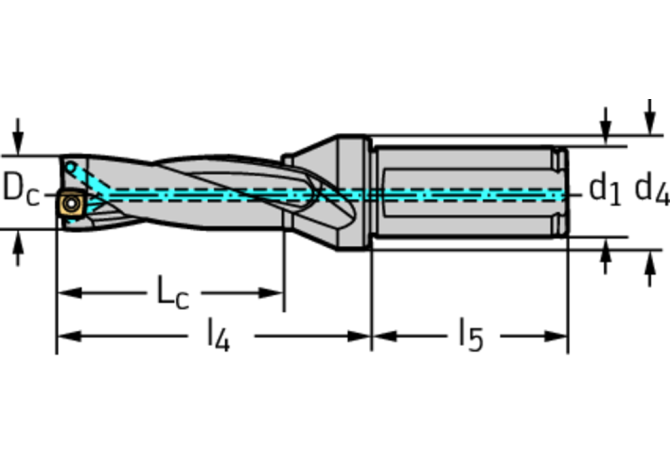

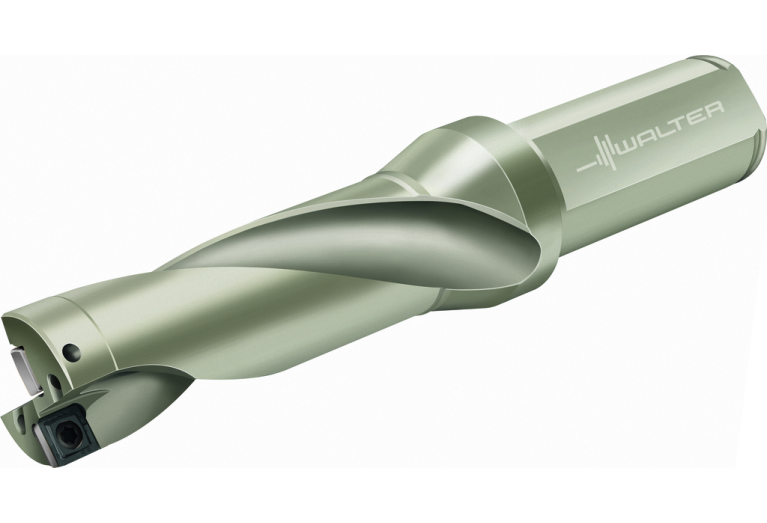

B4213.UL26.167.Z1.050R-2

B4213.UL26.167.Z1.050R-2 B4213.UL26.167.Z1.050R-2 B4213.UL26.167.Z1.050R-2

B4213.UL26.167.Z1.050R-2

Walter
Артикул: 6312712
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
16.66 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL10002435
FamilyProducts
Insert drills B4213
FHA Flute helix angle
20 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
6312712
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
ZYL24S1000$$$$
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
67.1 mm
LF Functional length
75.087 mm
LOC-03 CCFMS Form
24
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
ZYL24S1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10002435
LPR Protruding length
75.387 mm
LS Shank length
101.6 mm
LU Usable length
50 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
B4213.UL26.167.Z1.050R-2
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
176.987 mm
PL Point length
0.3 mm
RPMX Rotational speed maximum
9200 1/min
SIG Point angle 1st step
176 Degree
Working process
BVB - Drilling
WT Weight of item
0.54 kg
