Главная Каталог продукции СЗЦПК инструмент 13 306-01 - Twist drill for indexable inserts B4213.UL26.143.Z1.043R-1

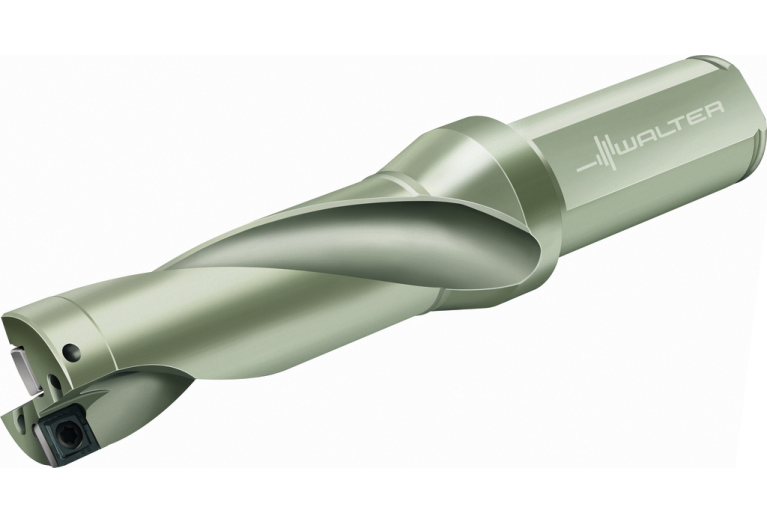

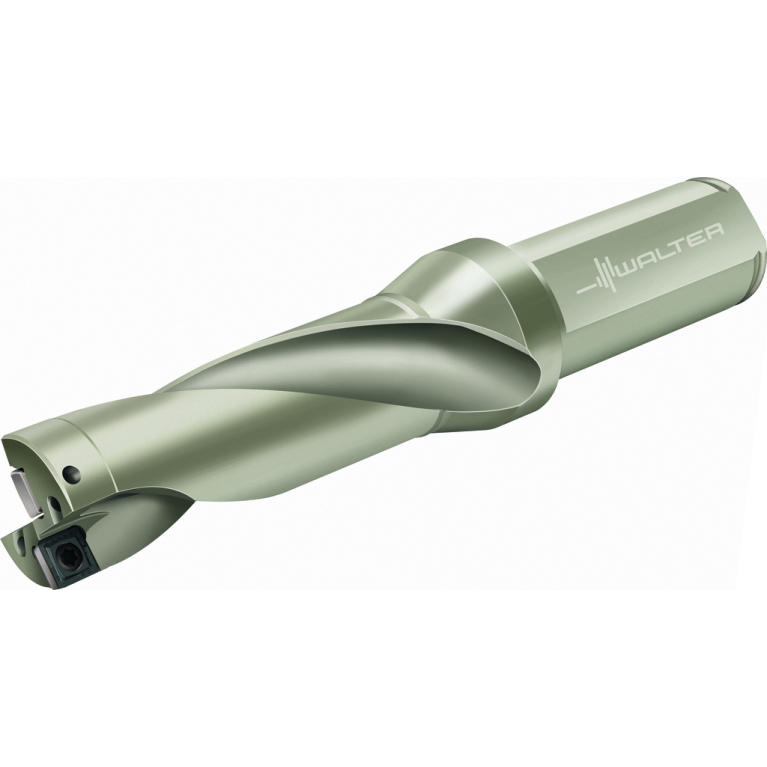

B4213.UL26.143.Z1.043R-1

B4213.UL26.143.Z1.043R-1 B4213.UL26.143.Z1.043R-1 B4213.UL26.143.Z1.043R-1

B4213.UL26.143.Z1.043R-1

Walter
Артикул: 6312711
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial

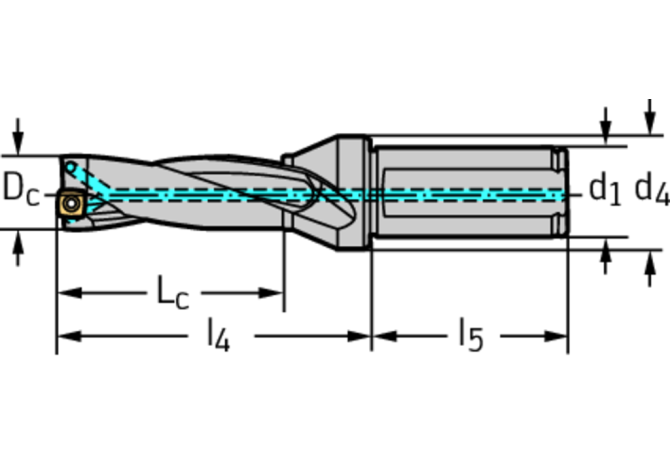

DC Cutting diameter minimum
14.275 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL10002435
FamilyProducts
Insert drills B4213
FHA Flute helix angle
20 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
6312711
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
ZYL24S1000$$$$
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
60.7 mm
LF Functional length
67.944 mm
LOC-03 CCFMS Form
24
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
ZYL24S1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10002435
LPR Protruding length
68.224 mm
LS Shank length
101.6 mm
LU Usable length
43 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
B4213.UL26.143.Z1.043R-1
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
169.824 mm
PL Point length
0.28 mm
RPMX Rotational speed maximum
12200 1/min
SIG Point angle 1st step
176 Degree
Working process
BVB - Drilling
WT Weight of item
0.51 kg
