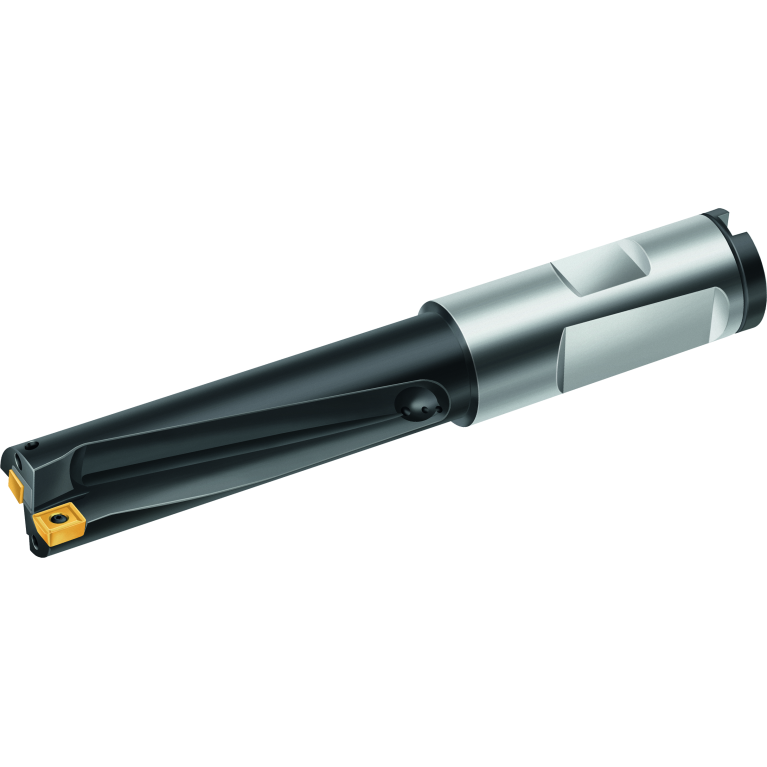

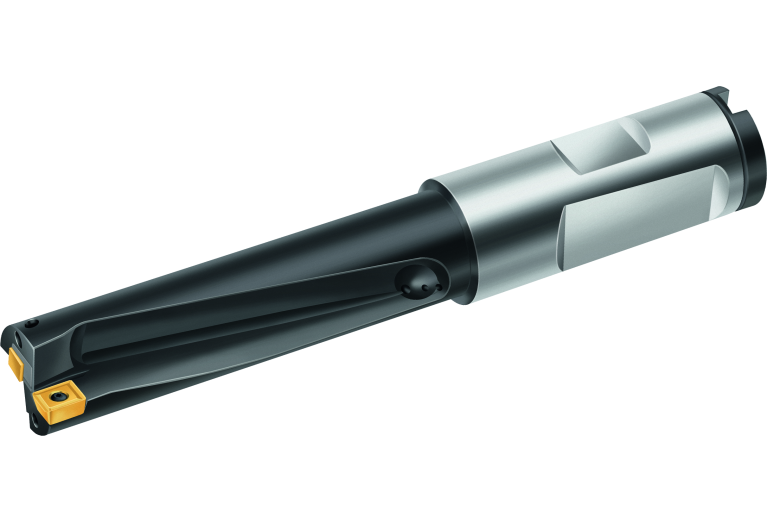

B3214.F.037.Z01.148R
B3214.F.037.Z01.148R
Артикул:
5003275
В наличии
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
37 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL04001115
FamilyProducts
Solid drills B3214
FHA Flute helix angle
0 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
5003275
Interface codes
J6 / J61
ISO
ZYL11G4000h$06
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
178 mm
LF Functional length
186.7 mm
LOC-01 BI Block index
1
LOC-01 MTP Clamping type code 1st step
S Screwed on across the bore, with counter bore
LOC-01 ISO
WR$$P28405**3R*****
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
W-P28405**
LOC-02 BI Block index
2
LOC-02 ISO
WR$$P28405**3R*****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
W-P28405**
LOC-03 CCFMS Form
11
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL11G4000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001115
LPR Protruding length
186.7 mm
LS Shank length
70 mm
LU Usable length
148 mm
MTP Clamping type code 1st step
S
Name Identifying order number
B3214.F.037.Z01.148R
OAL Overall length
258 mm
PL Point length
1.3 mm
RPMX Rotational speed maximum
999999 1/min
SIG Point angle 1st step
175.8 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
1.637 kg
Номер таблицы (BI) / Block index (BI)
1
