Главная Каталог продукции СЗЦПК инструмент 13 306-01 - Twist drill for indexable inserts B3213.C4.026.Z01.078R

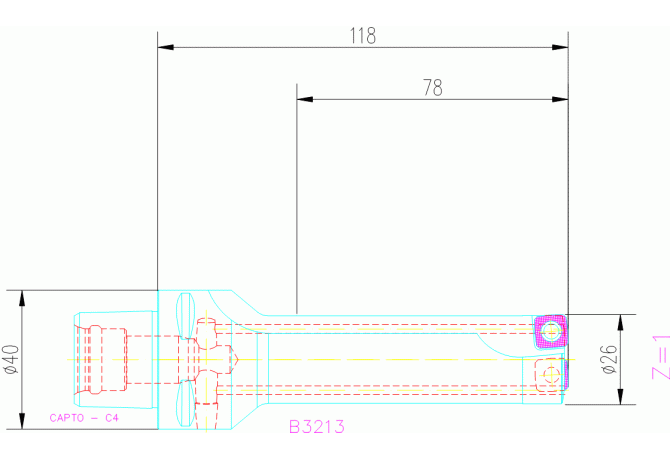

B3213.C4.026.Z01.078R

B3213.C4.026.Z01.078R B3213.C4.026.Z01.078R

B3213.C4.026.Z01.078R

Walter
Артикул: 5043140
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
26 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS04000195
FamilyProducts
Insert drills B3213.C
FHA Flute helix angle
0 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
5043140
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
CCS01C0400$$$$
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
103 mm
LF Functional length
116.9 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR Protruding length
118 mm
LU Usable length
78 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
B3213.C4.026.Z01.078R
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
142 mm
PL Point length
1.1 mm
RPMX Rotational speed maximum
999999 1/min
SIG Point angle 1st step
176 Degree
STDNO Standard
ISO26623-1
Working process
BVB - Drilling
WT Weight of item
0.49 kg
