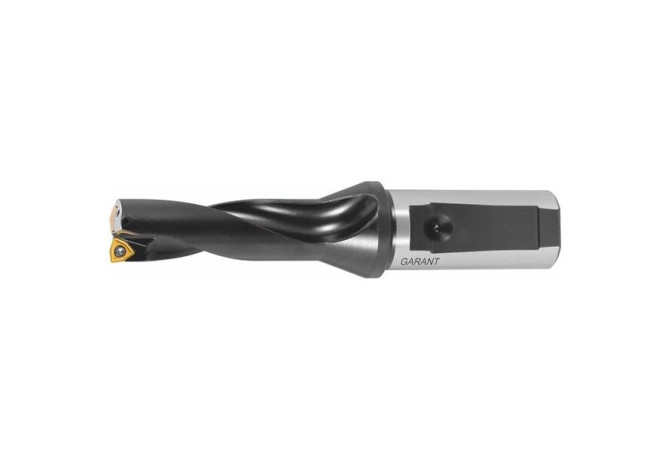

Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts 232298 20

232298 20

232298 20 232298 20 232298 20

232298 20

Hoffmann Group
Артикул: 232298 20
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
30 mm
DIN
ZYL02501415
FamilyProducts
GARANT Indexable drill combination shank
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
60 mm
LOC-03 CCFMS Connection code form
14
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501415
LPR Protruding length
64 mm
LS Shank length
56 mm
LU Usable length
40 mm
Name Identifying order number
232298 20
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
120 mm
PL Point length
0.78 mm
Working process
No working processes available
WT Weight of item
0.297 kg
