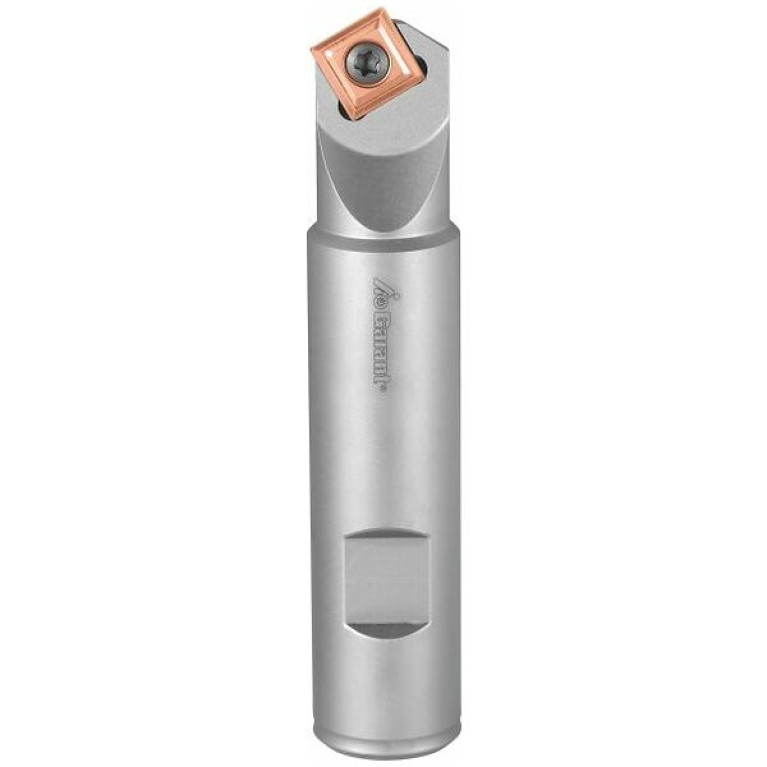

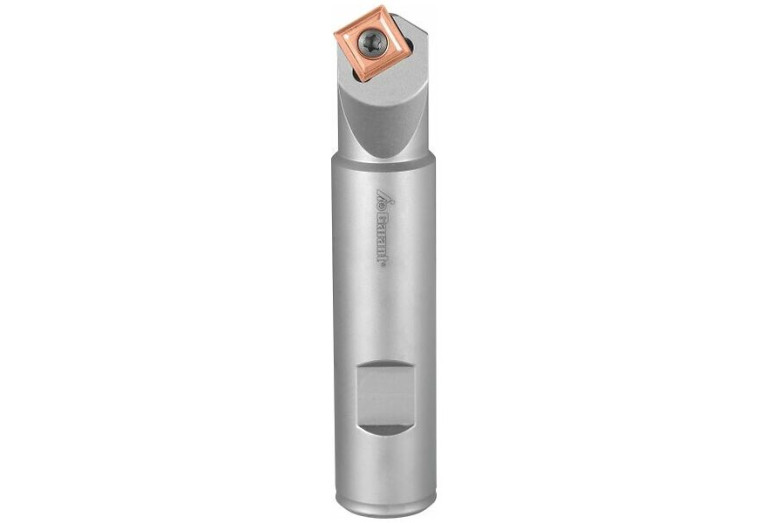

Главная Каталог продукции Toolunited 13 306-01 - Twist drill for indexable inserts 231501 20

231501 20

231501 20 231501 20 231501 20

231501 20

Hoffmann Group
Артикул: 231501 20
В наличии
В корзину
Описание
Характеристики
C1B Insert thickness Pos. B
3.97 mm
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
3.78 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
20 mm
DIN
ZYL02001005
FamilyProducts
GARANT NC spotting drill
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
19.98 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02001005
LPR Protruding length
50 mm
LS Shank length
70 mm
LU Usable length
5.5 mm
Name Identifying order number
231501 20
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1

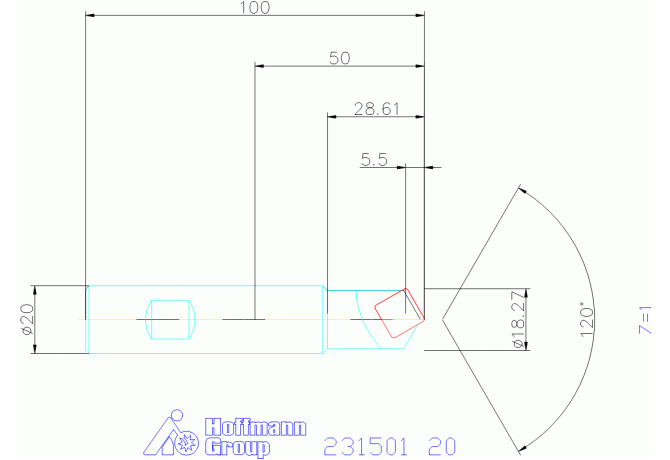

OAL Overall length
100 mm
PL Point length
5.5 mm
SIG Point angle 1st step
120 Degree
Working process
No working processes available
WT Weight of item
0.24 kg
