Главная Каталог продукции Toolunited 13 306-00 - Drills for indexable inserts unspecified V46 41501

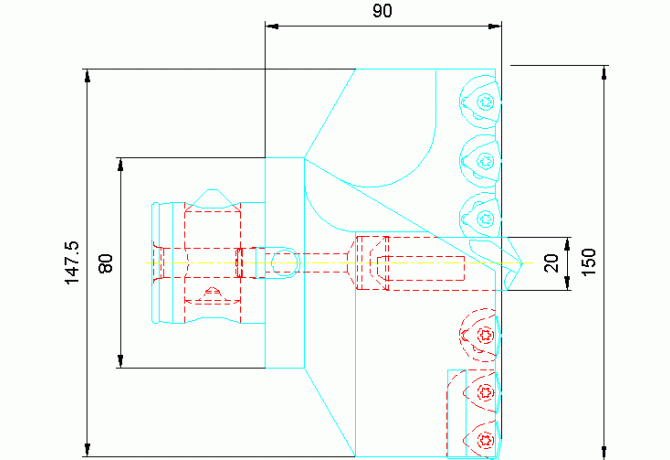

V46 41501

V46 41501

V46 41501

Komet Group
Артикул: 1490785
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
A1B Cutting edge angle major Pos. B
80 Degree
A2A Clearance angle major Pos. A
8 Degree
A2B Clearance angle major Pos. B
8 Degree
B1A Cutting edge length Pos. A
7.9 mm
B1B Cutting edge length Pos. B
7.9 mm
B3A Inscribed circle diameter Pos. A
12 mm
B3B Inscribed circle diameter Pos. B
12 mm
BI Block index
1
BLDA Tool style code Position A
7
BLDB Tool style code Position B
7
BLDEV Balancing device
0
C1A Insert thickness Pos. A
4.8 mm
C1B Insert thickness Pos. B
4.8 mm
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KOG - Komet Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
150 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
155 mm
Delivery state valid from
4/24/2012
DIN
ABS08000215
FamilyProducts
Bohrkrone Ø150
HAND Cutting direction
R - Right
ID Technical product number
1490785
Interface codes
J6 /
ISYC Subclass
306-00 - Drills for indexable inserts unspecified
LCF Length chip flute
0 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
WOEX080408
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
WO0804043N
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
WOEX080408
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
WO0804083N
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ABS KOMET ABS connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0800
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ABS08000215
LPR Protruding length
90 mm
LU Usable length
90 mm
MIID Master insert identification
WOEX080408
Name Identifying order number
V46 41501
NOS Step count
1
NUMBER INSERTS INSIDE Number of inserts inside
5
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
0 mm
PHD Premachined hole diameter
0 mm
SIG Point angle 1st step
180 Degree
Working process
No working processes available
WT Weight of item
6.08 kg
