Главная Каталог продукции Toolunited 13 306-00 - Drills for indexable inserts unspecified 3.76078R040V

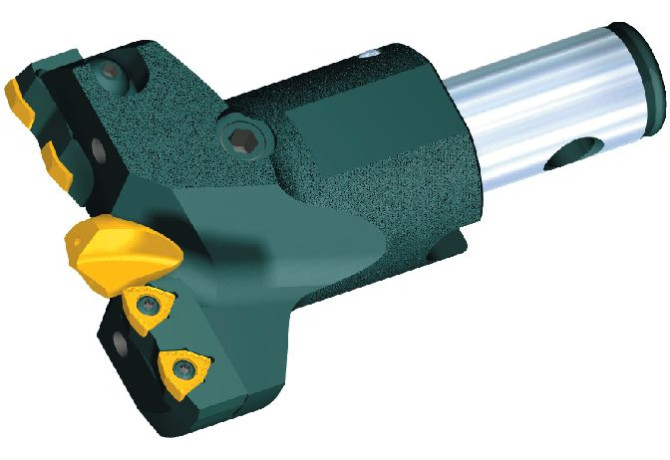

3.76078R040V

3.76078R040V 3.76078R040V

3.76078R040V

Kennametal
Артикул: 1245752
В наличии
В корзину
Описание
Характеристики
CCF Connection code form
50
CCONMS Connection count machine side
2
CCS Connection code style
5
CCT Connection code type
ZYL
CCU Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
CZC Connection size code
0150
DC Cutting diameter minimum
78 mm
DCINTF Interference cutting diameter
40.5 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
84 mm
Delivery state valid from
5/28/2017
DIN
HTS02000115
FamilyProducts
HTS ADJUSTABLE HEAD
HAND Cutting direction
R - Right
ID Technical product number
1245752
Interface codes
J6 /
ISYC Subclass
306-00 - Drills for indexable inserts unspecified
LOC-01 BI Block index
1
LOC-01 CCF Connection code form
50
LOC-01 CCS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCT Connection code type
ZYL cylindrical shank
LOC-01 CCU Connection code unit base
1 Metric with coolant
LOC-01 CZC Connection size code
0150
LOC-01-Connection-codes
J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills
LOC-01-DIN
KH-B510S15
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
KH-BTKA6
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HTS deep drilling system KENNAMETAL
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HTS02000115
LPR Protruding length
70 mm
Name Identifying order number
3.76078R040V
OAL Overall length
115 mm
Working process
No working processes available
WT Weight of item
0.8 kg
