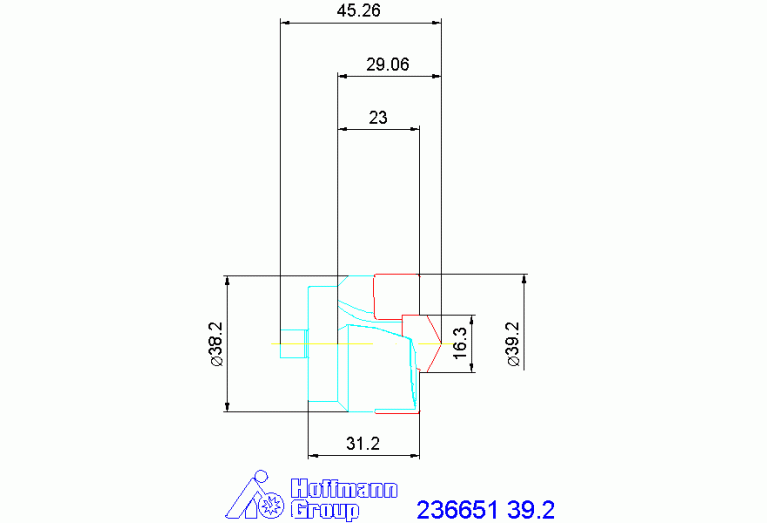

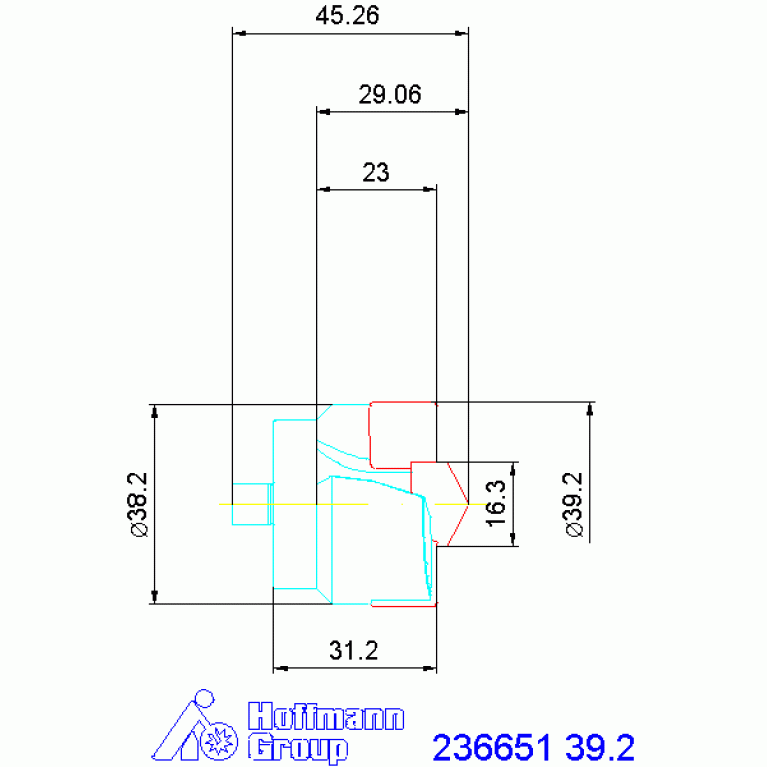

Главная Каталог продукции Toolunited 13 306-00 - Drills for indexable inserts unspecified 236651 39,2

236651 39,2

236651 39,2

Hoffmann Group

Артикул: 236651 39,2

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

8 Degree

A2B Clearance angle major Pos. B

8 Degree

B1A Cutting edge length Pos. A

12.7 mm

B1B Cutting edge length Pos. B

12.7 mm

B3A Inscribed circle diameter Pos. A

12.7 mm

B3B Inscribed circle diameter Pos. B

12.7 mm

BD Body diameter 1st step

32 mm

BLDA Tool style code Position A

2

BLDB Tool style code Position B

2

C1A Insert thickness Pos. A

5.16 mm

C1B Insert thickness Pos. B

5.16 mm

CCONMS Connection count machine side

1

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

D1B Corner radius Pos. B

0.8 mm

DC Cutting diameter minimum

39.2 mm

DCB Connection bore diameter

9.2 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

KGC03200715

FamilyProducts

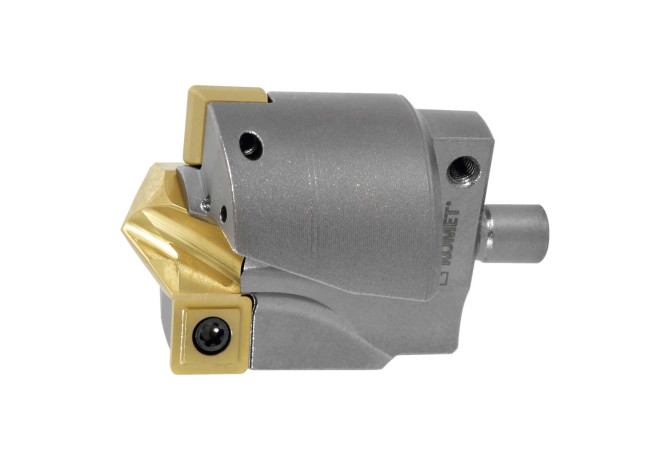

KOMET KUB Centron Powerline® drill head

GPL Guide pilot length

27 mm

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

306-00 - Drills for indexable inserts unspecified

LCF Length chip flute

37.2 mm

LF Functional length

37.2 mm

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

SOEX120508

LOC-01-Connection-codes

J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills

LOC-01-DIN

HOG-236659 70

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

SOEX120508

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO1205083N

LOC-03 CCFMS Connection code form

07

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

KGC Komet group connection

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KGC03200715

LPR Protruding length

37.2 mm

LS Shank length

2.4 mm

LU Usable length

29 mm

Name Identifying order number

236651 39,2

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

OAL Overall length

39.6 mm

PL Point length

0.19 mm

SIG Point angle 1st step

178 Degree

Working process

No working processes available

WT Weight of item

0.105 kg
