Главная Каталог продукции Toolunited 13 306-00 - Drills for indexable inserts unspecified 236650 57

236650 57

236650 57 236650 57

236650 57

Hoffmann Group
Артикул: 236650 57
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
84 Degree
A1B Cutting edge angle major Pos. B
84 Degree
A2A Clearance angle major Pos. A
8 Degree
A2B Clearance angle major Pos. B
8 Degree

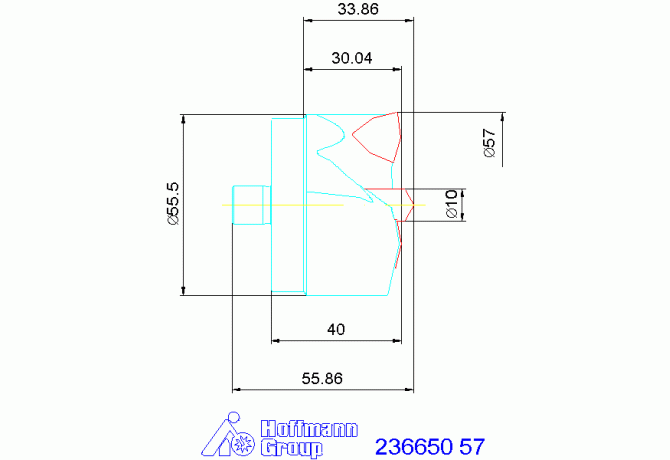

BD Body diameter 1st step
55.5 mm
BLDA Tool style code Position A
7
BLDB Tool style code Position B
7
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
57 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
KGC05350715
FamilyProducts

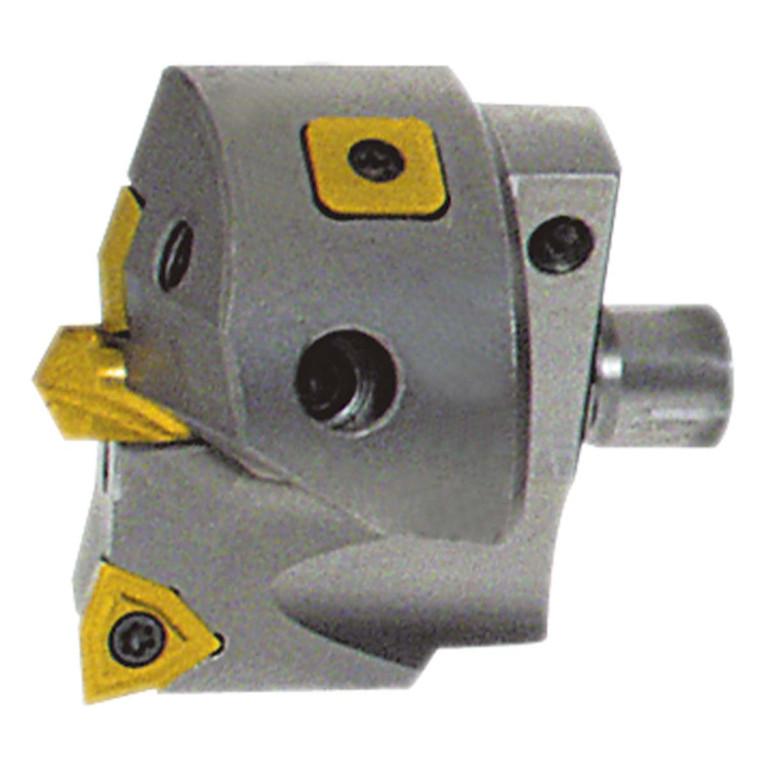

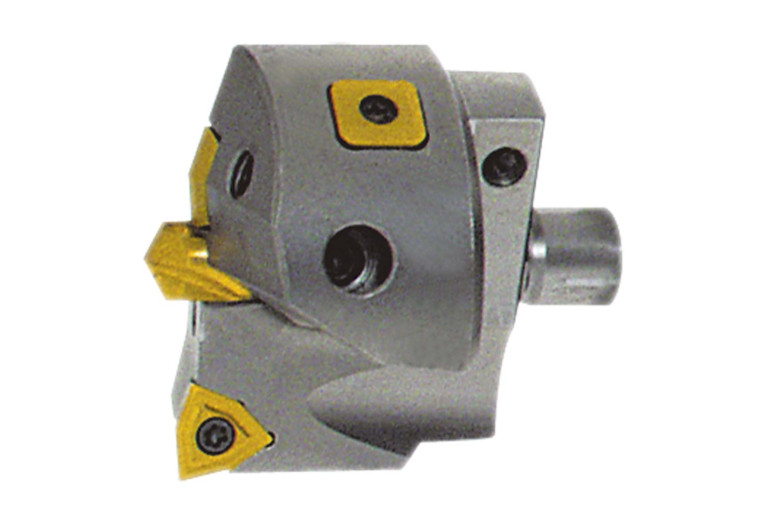

KOMET KUB Centron® drill head
GPL Guide pilot length
24.5 mm
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
306-00 - Drills for indexable inserts unspecified
LCF Length chip flute
35 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
WOEX080404-01
LOC-01-Connection-codes
J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills
LOC-01-DIN
HOG-CENTRONF10
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
WOEX080404-01
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
WO0804043N
LOC-03 CCFMS Connection code form
07
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
KGC Komet group connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0535
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KGC05350715
LPR Protruding length
30 mm
LU Usable length
30 mm
Name Identifying order number
236650 57
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
52 mm
PL Point length
1.77 mm
Working process
No working processes available
WT Weight of item
0.29 kg
