Главная Каталог продукции Toolunited 13 306-00 - Drills for indexable inserts unspecified 236650 28

236650 28

236650 28 236650 28

236650 28

Hoffmann Group
Артикул: 236650 28
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
84 Degree
A1B Cutting edge angle major Pos. B
84 Degree
A2A Clearance angle major Pos. A
8 Degree
A2B Clearance angle major Pos. B
8 Degree

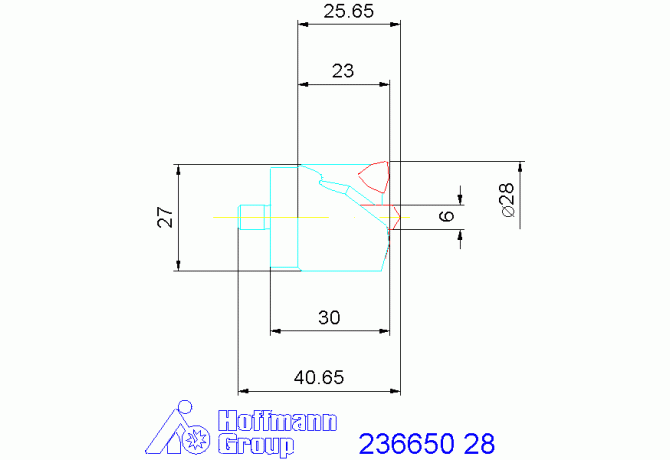

BD Body diameter 1st step
27 mm
BLDA Tool style code Position A
7
BLDB Tool style code Position B
7
CCONMS Connection count machine side
1
CEDC Cutting edge count
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
28 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
27 mm
DIN
KGC02500715
FamilyProducts
KOMET KUB Centron® drill head
GPL Guide pilot length
23.5 mm
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
306-00 - Drills for indexable inserts unspecified
LCF Length chip flute
30 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
WOEX0403**
LOC-01-Connection-codes
J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills
LOC-01-DIN
HOG-CENTRONF6
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
WOEX0403**
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
WO0403 3N
LOC-03 CCFMS Connection code form
07
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
KGC Komet group connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KGC02500715
LPR Protruding length
23 mm
LU Usable length
23 mm
Name Identifying order number
236650 28
OAL Overall length
38 mm
Working process
No working processes available
WT Weight of item
0.065 kg
