Главная Каталог продукции Toolunited 13 306-00 - Drills for indexable inserts unspecified 236650 21

236650 21

236650 21 236650 21

236650 21

Hoffmann Group
Артикул: 236650 21
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
84 Degree
A1B Cutting edge angle major Pos. B
84 Degree
A2A Clearance angle major Pos. A
8 Degree
A2B Clearance angle major Pos. B
8 Degree

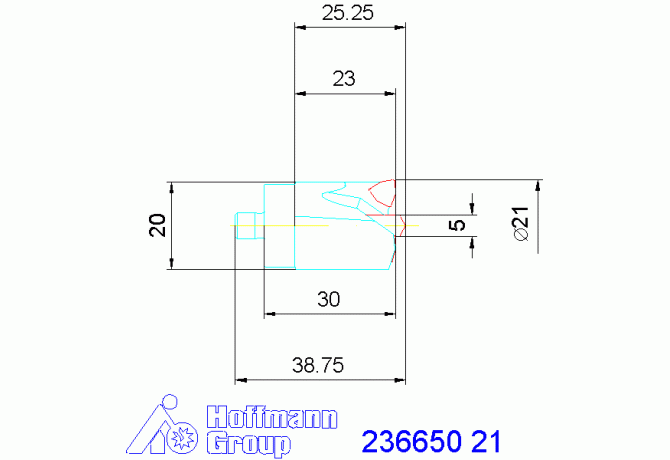

BD Body diameter 1st step
20 mm
BLDA Tool style code Position A
7
BLDB Tool style code Position B
7
CCONMS Connection count machine side
1
CEDC Cutting edge count
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
21 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DF Flange diameter
20 mm
DIN
KGC01900715
FamilyProducts
KOMET KUB Centron® drill head
GPL Guide pilot length
22 mm
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
306-00 - Drills for indexable inserts unspecified
LCF Length chip flute
30 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
WOEX030204
LOC-01-Connection-codes
J43 / J431 - interface code, workpiece side, for drilling heads or pilot drills
LOC-01-DIN
HOG-CENTRONF5
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
WOEX030204
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
WO0302043N
LOC-03 CCFMS Connection code form
07
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
KGC Komet group connection
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0190
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
KGC01900715
LPR Protruding length
23 mm
LU Usable length
23 mm
Name Identifying order number
236650 21
OAL Overall length
36.5 mm
Working process
No working processes available
WT Weight of item
0.035 kg
