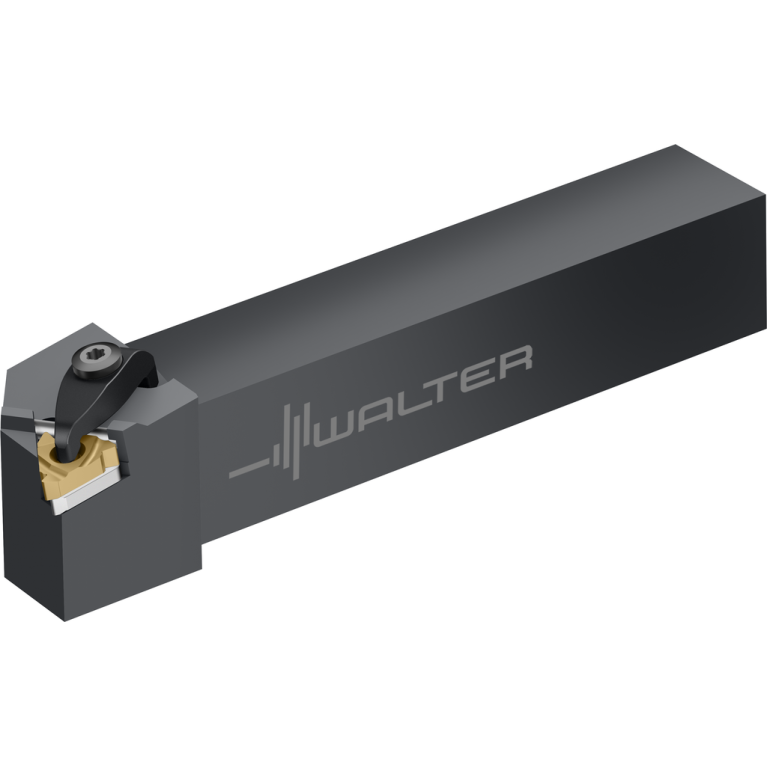

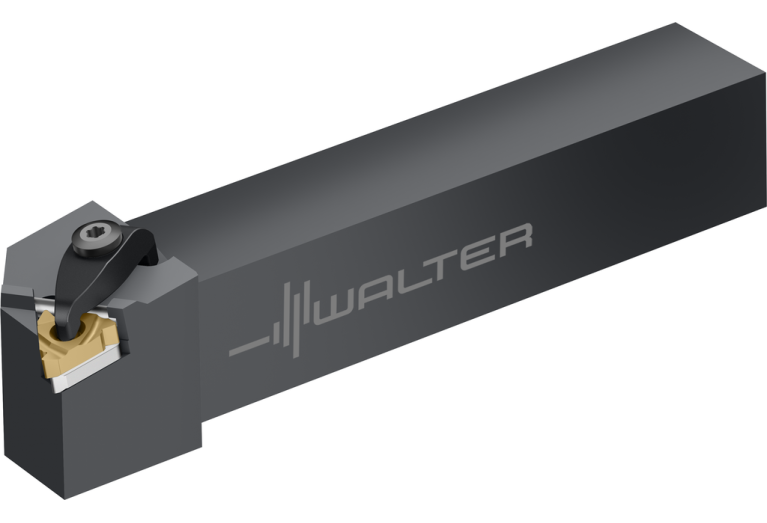

T1011-4040R-TS22

T1011-4040R-TS22 T1011-4040R-TS22 T1011-4040R-TS22

T1011-4040R-TS22

Walter
Артикул: 8643216
В наличии
В корзину
Описание
Характеристики
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
Delivery state valid from
12/1/2024
DHD Drop head design
0 - Normal
DIN
VKT40400105
FamilyProducts
Shank tool – External thread T1011
HAND Cutting direction
R - Right
HF Functional height
40 mm
ID Technical product number
8643216
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01A4040$$$$
ISO CSW1
WR$$NTSE22**2R*****
ISYC Subclass
309-02 - Turning tool for external threading
KAPR Tool cutting edge angle
90 Degree
LF Functional length
200 mm
LH Head length
42 mm
LOC-03 B Shank width
40 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
4040
LOC-03 H Shank height
40 mm
LOC-03 ISO
VKT01A4040$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT40400105
LPR Protruding length
200 mm
LTA Length tool assembly
42 mm
Name Identifying order number
T1011-4040R-TS22
OAL Overall length
200 mm
THSC Tool holder shape code
G - straight shank design
WF Functional width
40 mm
Working process
DGA - Thread turning, external
WT Weight of item
2.6 kg
