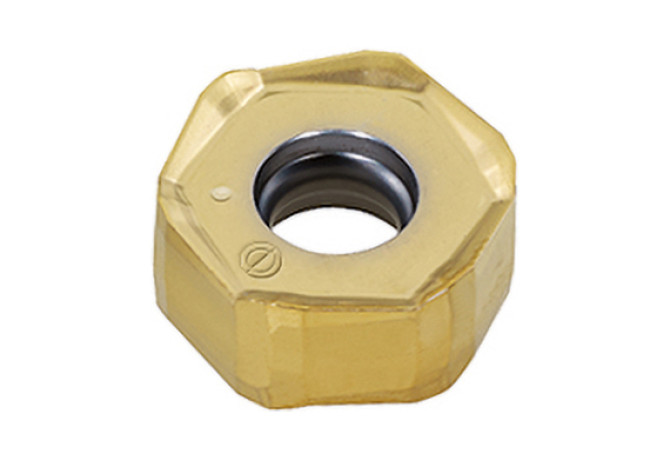

HNGU0605ANR-ML IN2505

Артикул: 6260045

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating

TiAIN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

7/1/2024

DIN

HN0605AN5R

EPSR Insert included angle

120 Degree

FamilyProducts

insert, 12-edged positive geometry

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

S20-S40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P20-P40

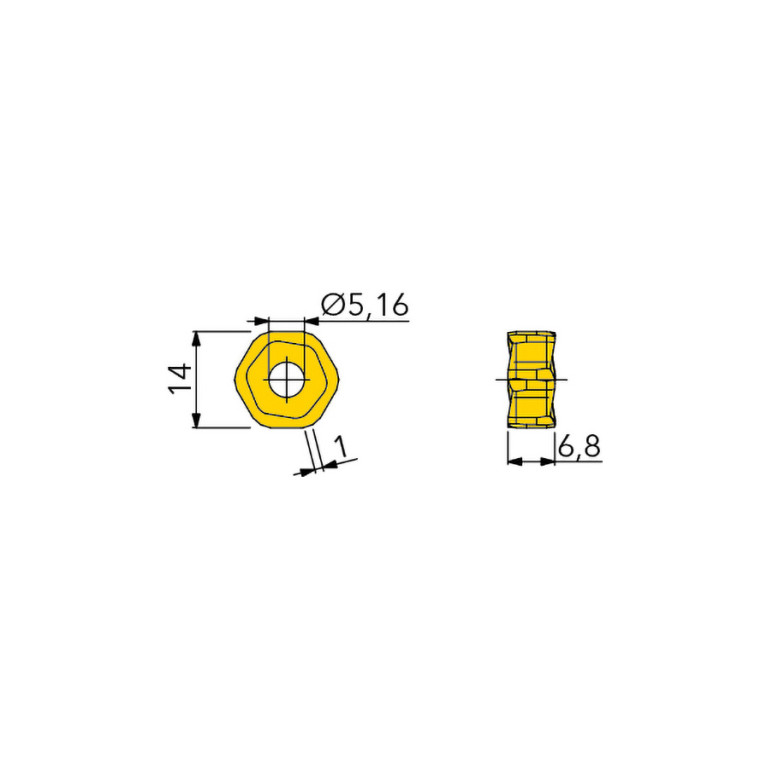

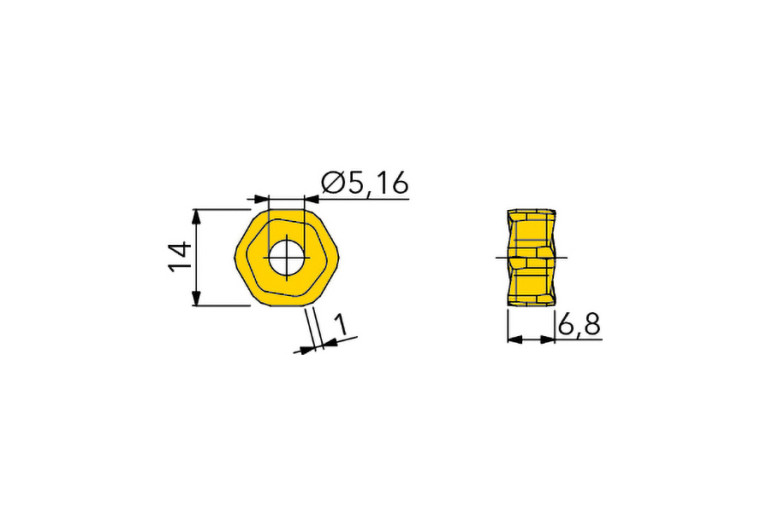

IC Inscribed circle diameter

14 mm

ID Technical product number

6260045

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-08 - Hexagonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

4.6 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

HN0605AN5R

Materials

P,M,S

Name Identifying order number

HNGU0605ANR-ML IN2505

NOI Insert index count

S Insert thickness

6.8 mm

S1 Insert thickness total

6.8 mm

TCINS Tolerance class insert

Working process

No working processes available
