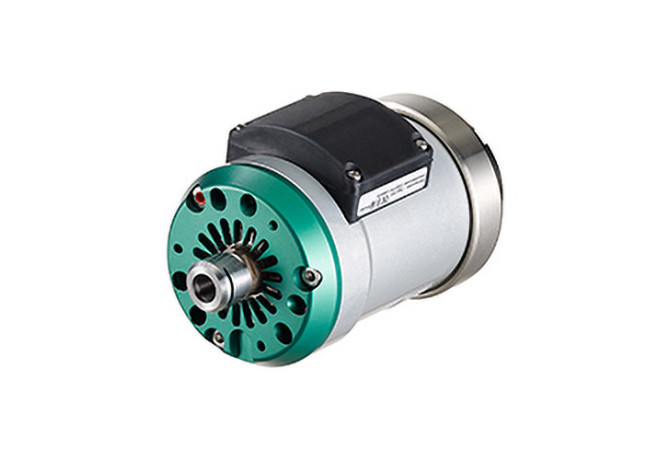

Главная Каталог продукции Toolunited 13 403-01 - Driven tool unit - straight design TJS GJET C5

TJS GJET C5

TJS GJET C5 TJS GJET C5 TJS GJET C5 TJS GJET C5

TJS GJET C5

Ingersoll
Артикул: 3356932
В наличии
В корзину
Описание
Характеристики

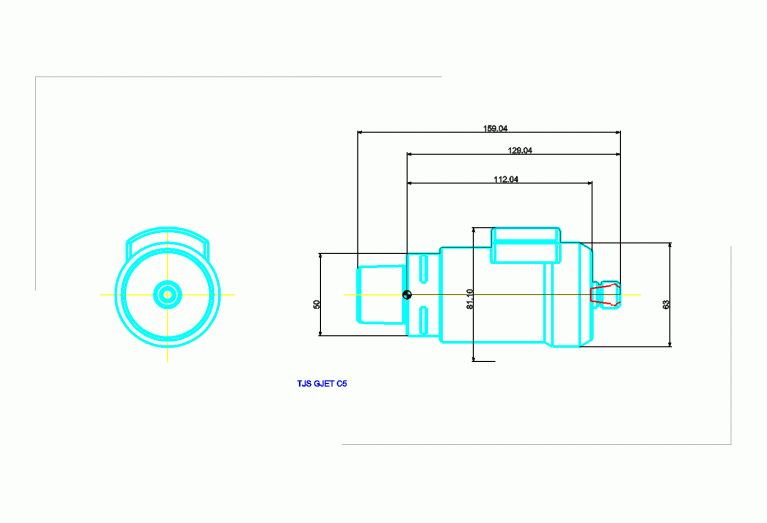

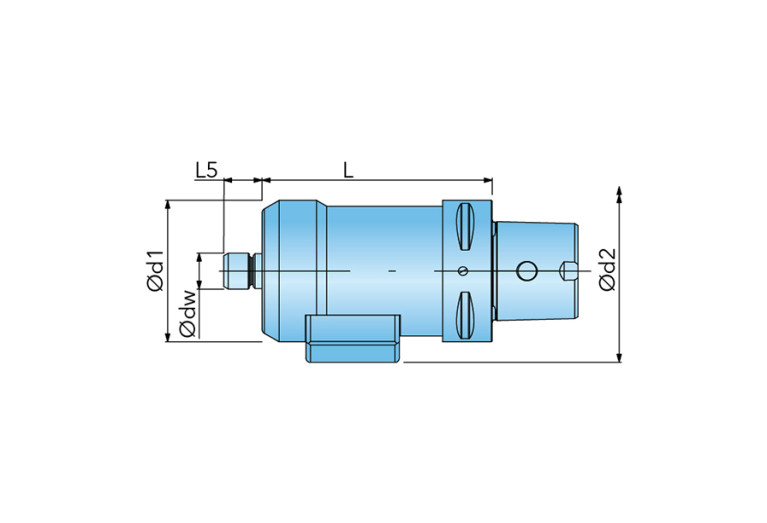

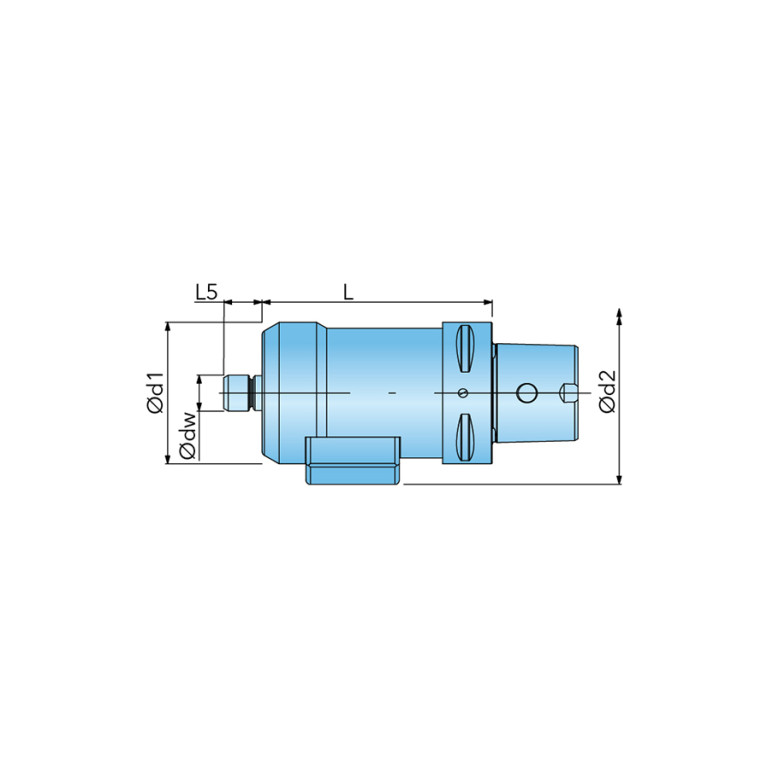

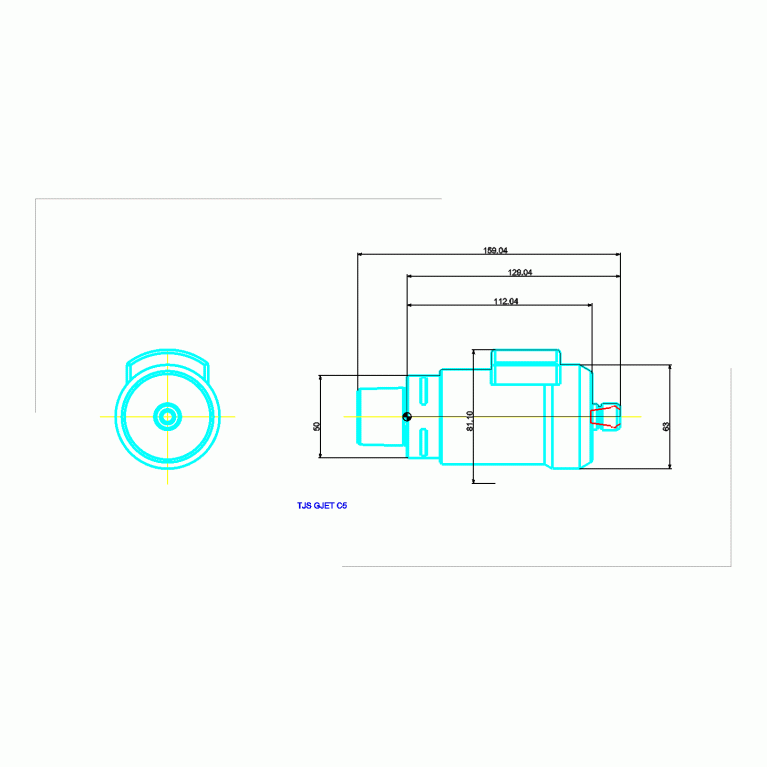

BDX Body diameter maximum
81 mm
CCFOP Connection code form output side
02
CCSWS Connection code style workpiece side
5 - Shaft in machine direction or hole in workpiece direction
CCTOP Connection code type output side
SZD
CCUWS Connection code unit base workpiece side
8 - non-dimensional size
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CONARWS Connection arrangement workpiece side
0
CXSC Coolant exit style code
0 - Without coolant exit
CZCOP Connection size code output side
0110
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/1/2024
DIN
CCS05000185
DIN CSW1
SZD01100285
DRVL Drive length
17 mm
FamilyProducts
High Speed Jet Spindle TJS GJET C#
ID Technical product number
3356932
Interface codes
J6 / J41
Interface codes CSW1
J41 /
ISYC Subclass
403-01 - Driven tool unit - straight design
LOC-01-Connection-codes
J41 / J441 - Trennstellenkodierung, Abtrieb 1
LOC-01-DIN
SZD01100285
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - Trennstellenkodierung, maschinenseitig
LOC-03-DIN
CCS05000185
LPR Protruding length
112 mm
Name Identifying order number
TJS GJET C5
OAH Overall height
63 mm
Working process
No working processes available
WT Weight of item
1.5 kg
