15G1D032043X8R00
15G1D032043X8R00
Артикул:
3724047
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
12 Degree
APMX Depth of cut maximum
1 mm
B1A Cutting edge length Pos. A
6.46 mm
B2A Insert width Pos. A
6.46 mm
B3A Inscribed circle diameter Pos. A
6.46 mm
BLDA Tool style code Position A
2
C1A Insert thickness Pos. A
3 mm
CCONMS Connection count machine side
2
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
24 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
32 mm
Delivery state valid from
7/1/2024
DIN
SAD01600115
DN Neck diameter
29 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts

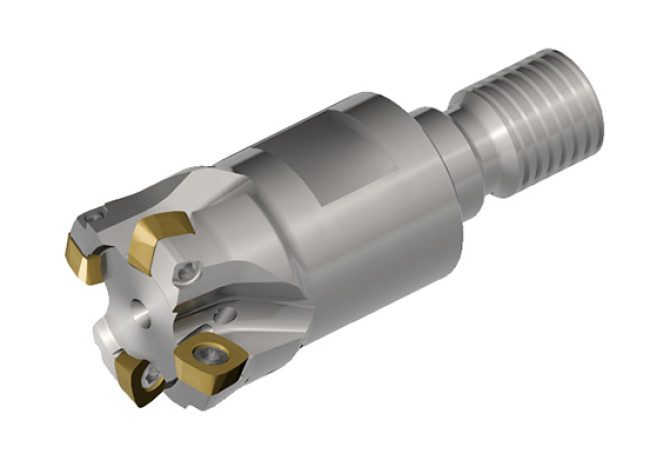

High Feed Cutter 15G1D...X
HAND Cutting direction
R - Right
ID Technical product number
3724047
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-02 - Non-centre cutting single row V-groove end mill
KAPR Tool cutting edge angle
12 Degree
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01600115
LPR Protruding length
43 mm
Name Identifying order number
15G1D032043X8R00
OAL Overall length
67 mm
RMPX Ramping angle maximum
1.7 Degree
THSZMS Connection thread nominal size machine side
M16
Working process
No working processes available
WT Weight of item
0.13 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
