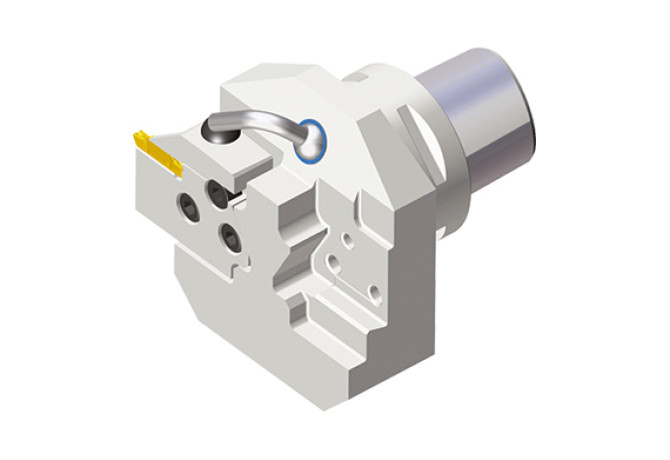

Главная Каталог продукции Toolunited 13 309-12 - System tool for ID grooving C5-TCAHPN

C5-TCAHPN

Артикул: 6309983

В наличии

В корзину

Описание

Характеристики

BDRED Body diameter reduced

50 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

6 - With coolant supply (discharge), peripheral/decentralized adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7/1/2024

DIN

CCS05000195

DIN CSW1

IL-K-1429

FamilyProducts

C-TCAHPN Perpendicular Typ

HAND Cutting direction

N - Neutral

HF Functional height

50 mm

ID Technical product number

6309983

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISYC Subclass

309-12 - System tool for ID grooving

LF Functional length

38.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

Name Identifying order number

C5-TCAHPN

OAL Overall length

38.5 mm

THSC Tool holder shape code

A - offset shank design

Working process

No working processes available

WT Weight of item

1.1 kg
