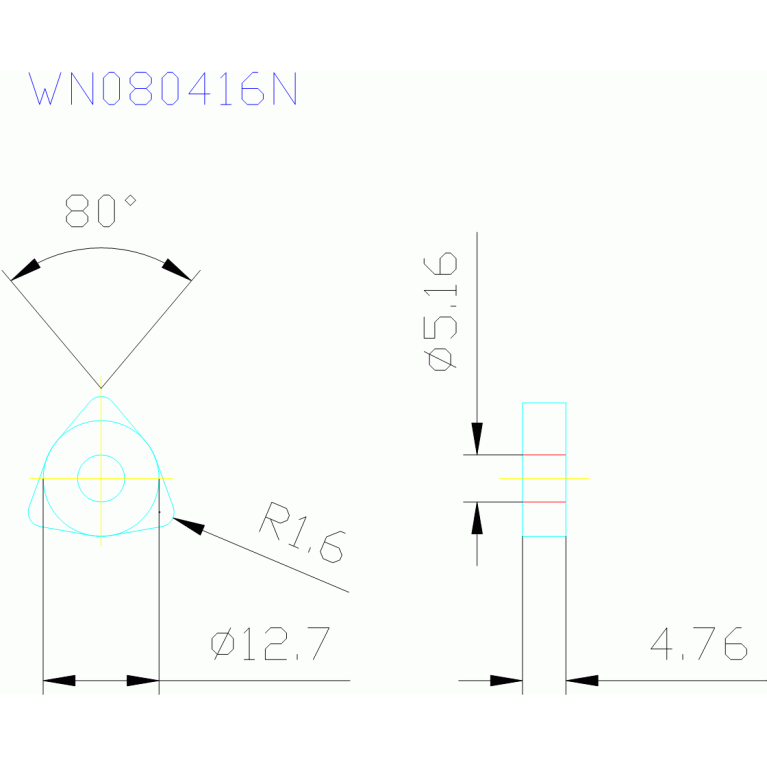

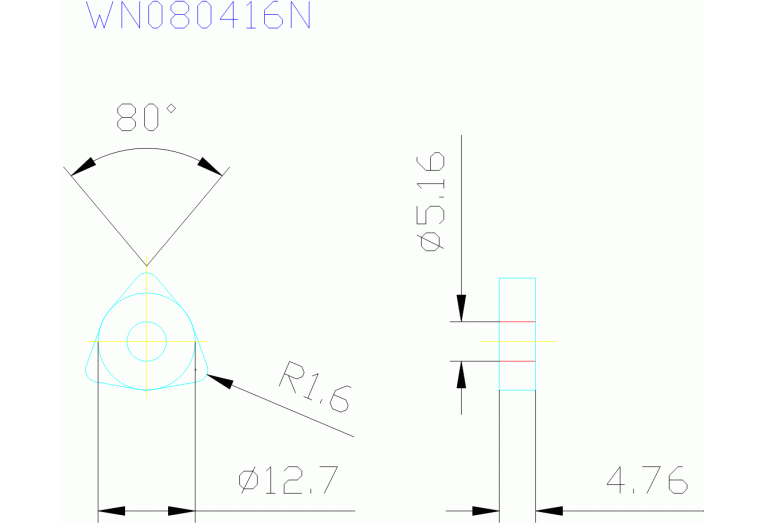

WNMG080416-MP MC6135
WNMG080416-MP MC6135
Артикул:
23197831
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
CBMD Chip breaker manufacturers designation
MP
CECC Cutting edge condition code
E - Rounded
COATN Coating
Accumulated TiCN-Al2
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
5.16 mm
Delivery state valid from
4/14/2024
EPSR Insert included angle
80 Degree
FamilyProducts
Turning insert (Negative)
GRDMFG Grade manufacturers designation
MC6135
IC Inscribed circle diameter
12.7 mm
ID Technical product number
23197831
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
ISO$WN0804162NB$$16
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
8.69 mm
LOC-03 ISO
ISO$WN0804162NB$$16
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
WNMG080416-MP MC6135
NOI Insert index count
6
RE Corner radius
1.6 mm
S Insert thickness
4.76 mm
STDDESAnsi Standard designation ANSI
WNMG434MP
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
