Главная Каталог продукции Toolunited 13 201-07 - Trigon insert WCNW060205TR IN4036

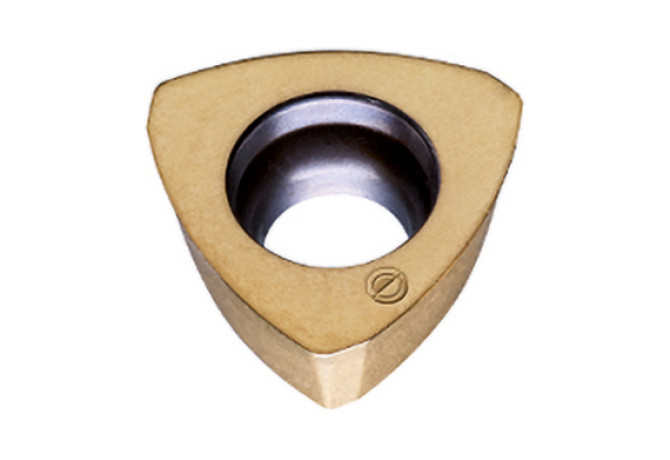

WCNW060205TR IN4036

Артикул: 3723735

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

BS Wiper edge length

0.8 mm

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

CEMR Cutting edge major radius

7.02 mm

COATN Coating / Покрытие

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4217

EPSR Insert included angle

60 Degree

FamilyProducts

insert, three-edged, neutral geometry

GRD2ND Standard designation of the grade 2nd application

S30-S50

GRDMFG Grade manufacturers designation

IN4036

GRDPRIO Standard designation of the grade main application

M30-M50

IC Inscribed circle diameter

6 mm

ID Technical product number

3723735

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

7.02 mm

LE Cutting edge effective length

3.72 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4217

Name Identifying order number

WCNW060205TR IN4036

NOI Insert index count

RE Corner radius

0.5 mm

S Insert thickness

2.5 mm

S1 Insert thickness total

2.5 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
