Главная Каталог продукции Toolunited 13 201-07 - Trigon insert WCNT060205FR-FL IN6537

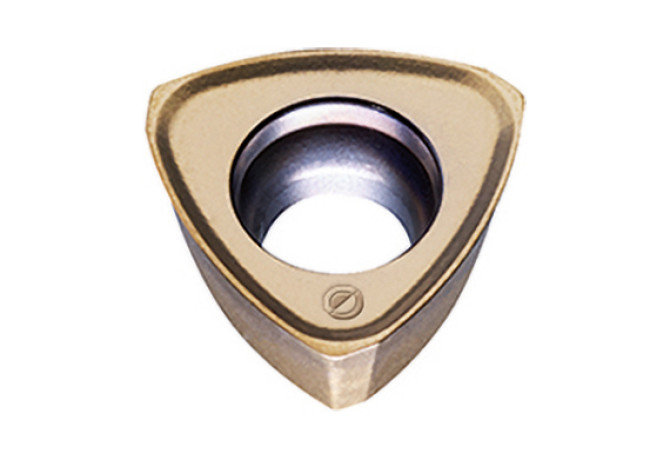

WCNT060205FR-FL IN6537

Артикул: 3723737

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

BS Wiper edge length

0.8 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

CEMR Cutting edge major radius

7.02 mm

COATN Coating

Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

7/1/2024

DIN

IL-WSP-4218

EPSR Insert included angle

60 Degree

FamilyProducts

insert, three-edged, positive geometry

GRD2ND Standard designation of the grade 2nd application

M30-M45

GRD3RD Standard designation of the grade 3rd application

K30-K45

GRDMFG Grade manufacturers designation

IN6537

GRDPRIO Standard designation of the grade main application

P30-P45

IC Inscribed circle diameter

6 mm

ID Technical product number

3723737

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

7.02 mm

LE Cutting edge effective length

3.72 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4218

Materials

P,M,K

Name Identifying order number

WCNT060205FR-FL IN6537

NOI Insert index count

RE Corner radius

0.5 mm

S Insert thickness

2.5 mm

S1 Insert thickness total

2.5 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
