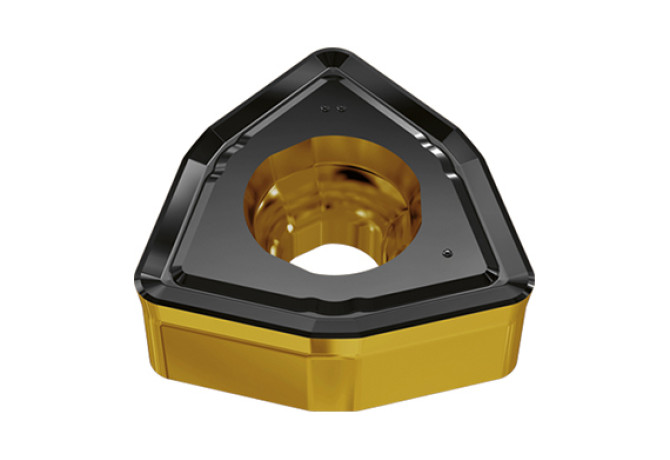

FCMX 100616-HFP TT8115B

Артикул: 6330934

В наличии

В корзину

Описание

Характеристики

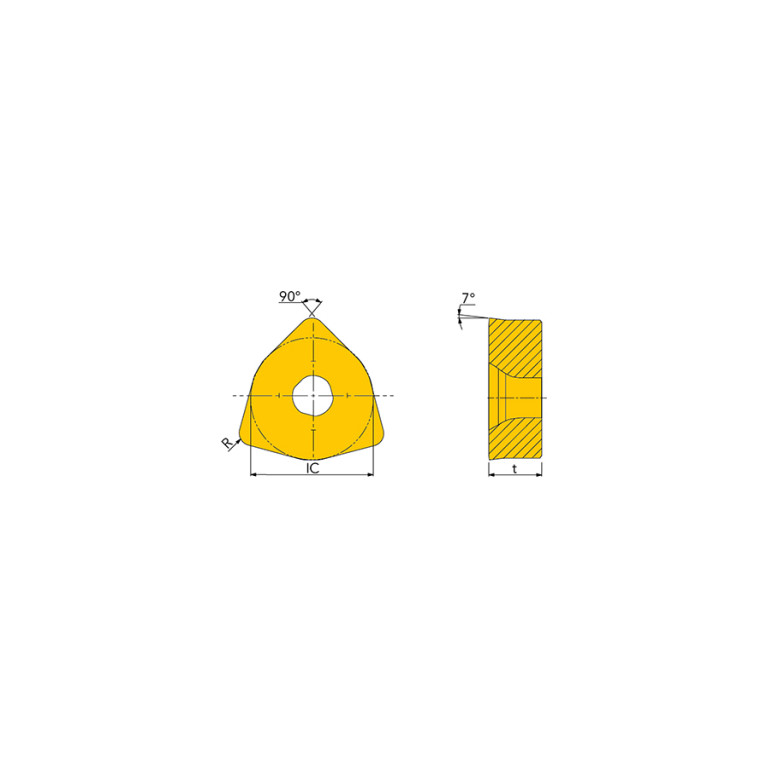

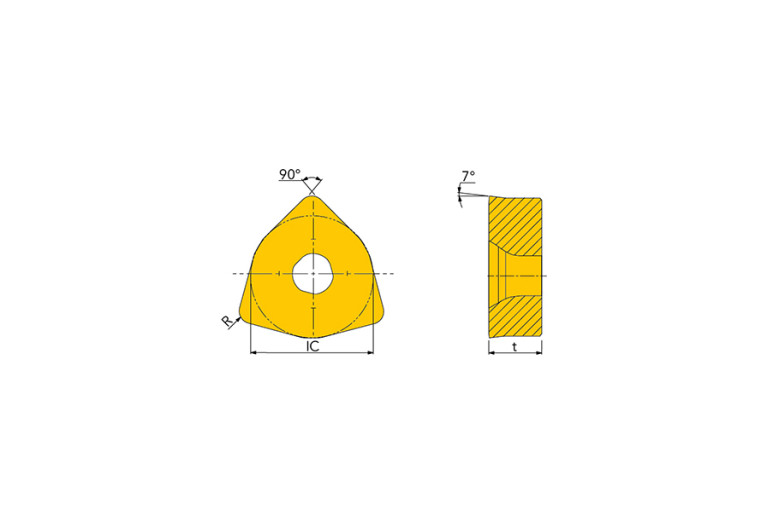

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

HFP

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

7/1/2024

DIN

IL-WSP-4330

EPSR Insert included angle

90 Degree

FamilyProducts

Positive 90° Trigon high feed inserts

GRDMFG Grade manufacturers designation

TT8115B

GRDPRIO Standard designation of the grade main application

P05-P20

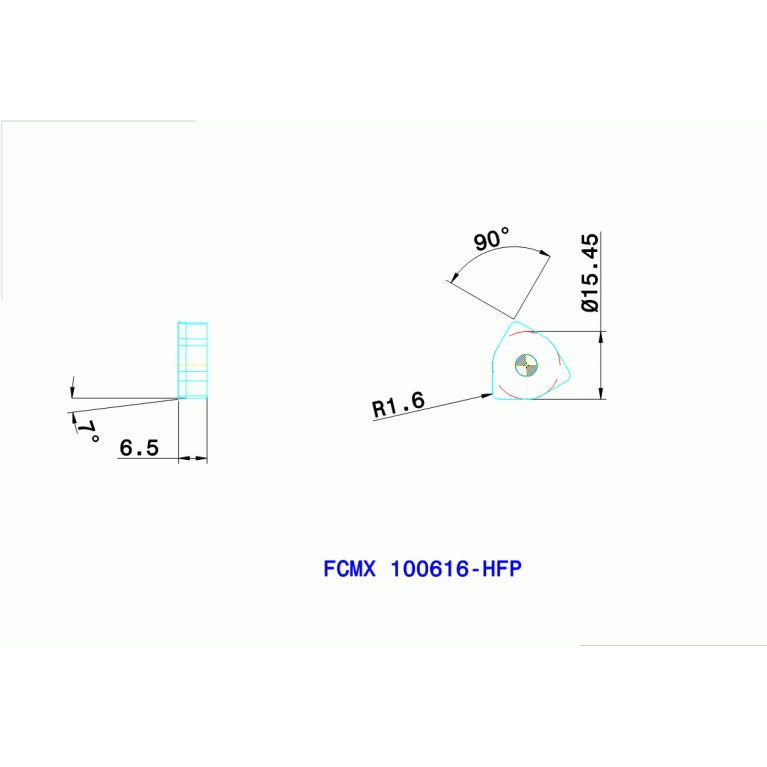

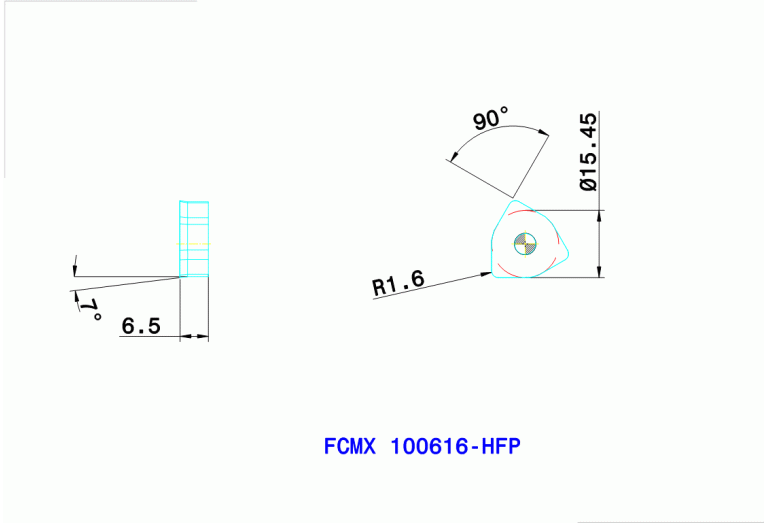

IC Inscribed circle diameter

15.45 mm

ID Technical product number

6330934

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4330

Materials

Name Identifying order number

FCMX 100616-HFP TT8115B

RE Corner radius

1.6 mm

S Insert thickness

6.5 mm

S1 Insert thickness total

6.5 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
