Главная Каталог продукции Toolunited 13 303-07 - Die end mill S79110.0

S79110.0

Артикул: 8030340

В наличии

В корзину

Описание

Характеристики

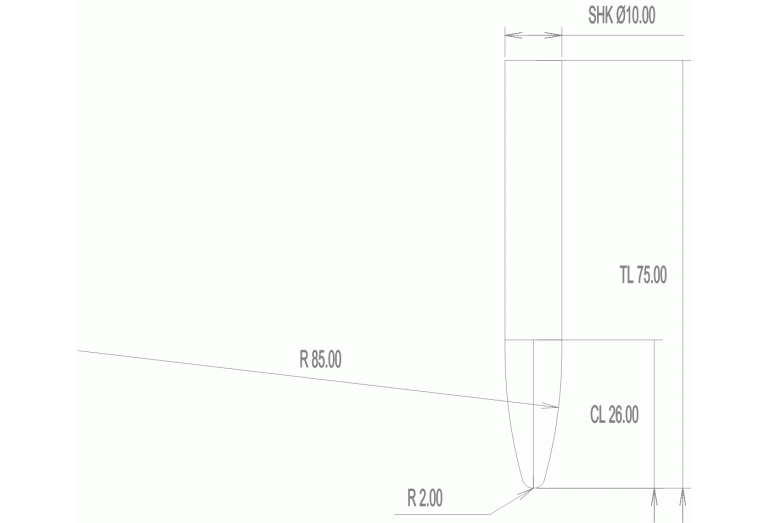

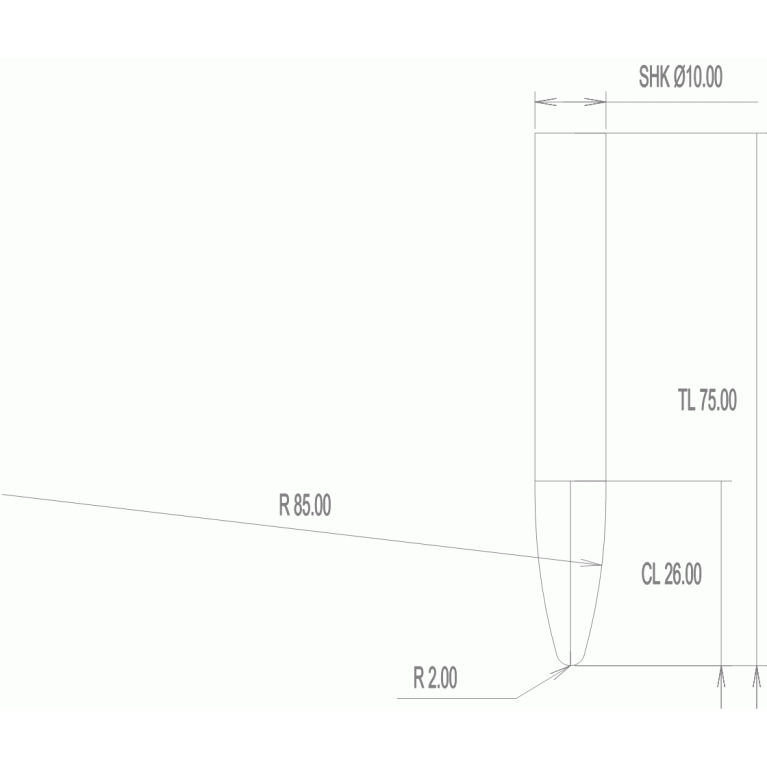

APMX Depth of cut maximum

26 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

AlCrN

COMPC Company code

DOR - Dormer Pramet

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

10 mm

Delivery state valid from

6/1/2024

DIN

ZYL01000105

FamilyProducts

3-4 Flute Solid Carbide Barrel-Shape End Mill

FHA Flute helix angle

30 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

8 Degree

GRDMFG Grade manufacturers designation

AlCrN

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

R - Right

ID Technical product number

8030340

Interface codes

J6 /

ISYC Subclass

303-07 - Die end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

Materials

P,M,K,N,S

Name Identifying order number

S79110.0

OAL Overall length

75 mm

STDNO Standard

DORMER

Working process

FFO - Die milling,FRU - Round moulding

WT Weight of item

0.071 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count

ZNC Cutting edge centre count
