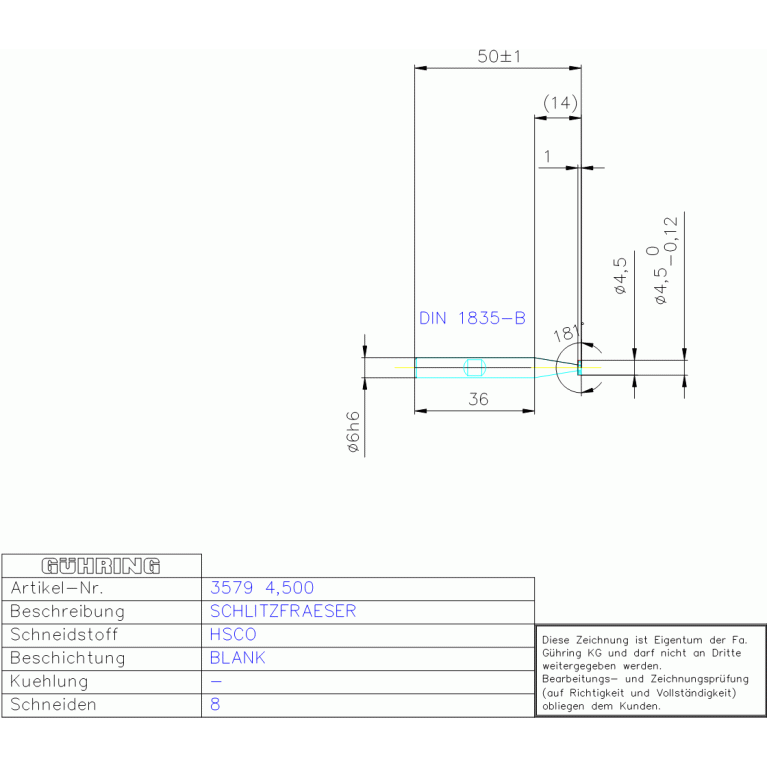

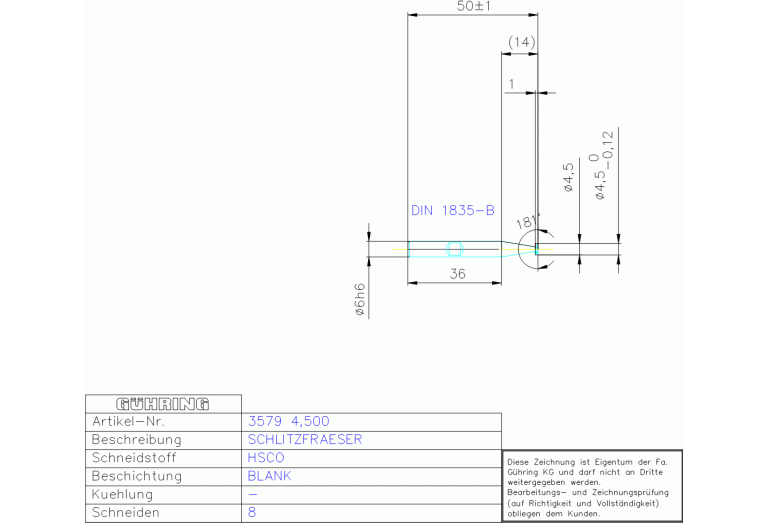

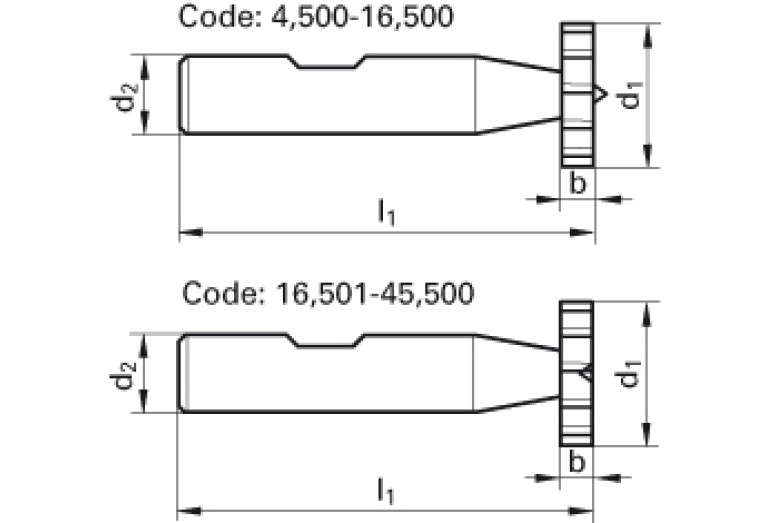

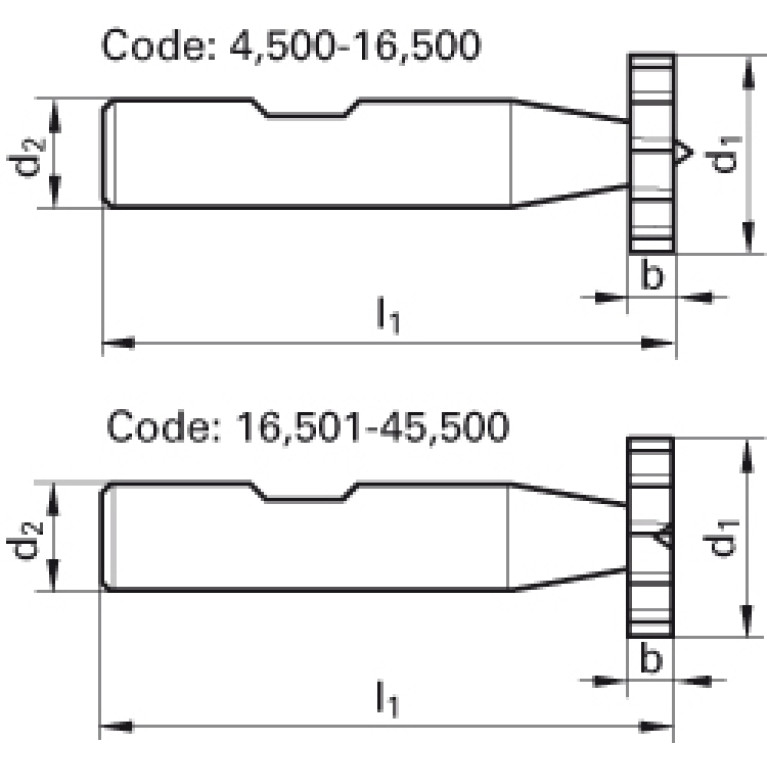

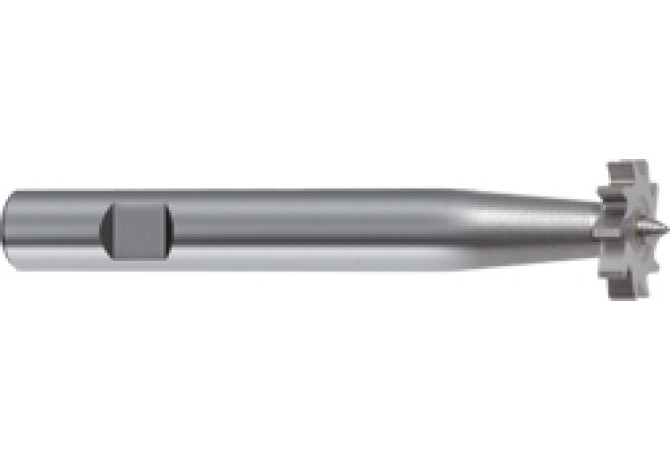

Главная Каталог продукции Toolunited 13 303-05 - T-slot end mill 3579 4.500

3579 4.500

Артикул: 3579 4.500

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

1 mm

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

4.5 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/18/2024

DIN

ZYL00601005

DN Neck diameter

1.8 mm

FamilyProducts

HSCO SCHLITZFRA, DIN850-C RH GG 4,5X1,0

FHH Flute helix hand

N - Hand of helix neutral

GAMP Rake angle axial

6 Degree

GRD2ND Standard designation of the grade 2nd application

HSCO

GRDMFG Grade manufacturers designation

HSCO

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LF Functional length

32 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601005

LPR Protruding length

14 mm

LS Shank length

36 mm

Name Identifying order number

3579 4.500

OAL Overall length

50 mm

STDLET Standard letter to the standard number

STDNO Standard

DIN 850

Working process

FNU - Groove milling

WT Weight of item

0.01 kg

ZEFP Peripheral effective cutting edge count
