Главная Каталог продукции СЗЦПК инструмент 13 202-04 - Insert, two cutting edges for parting, self clamping GZM2520N-020PM PR2035

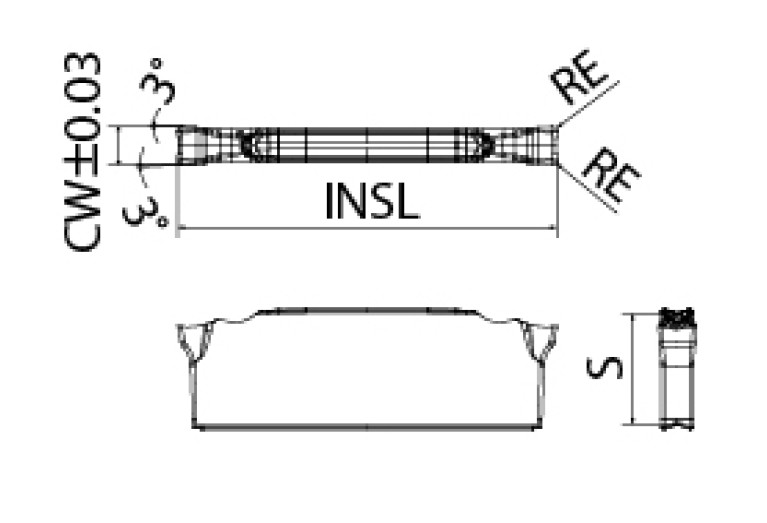

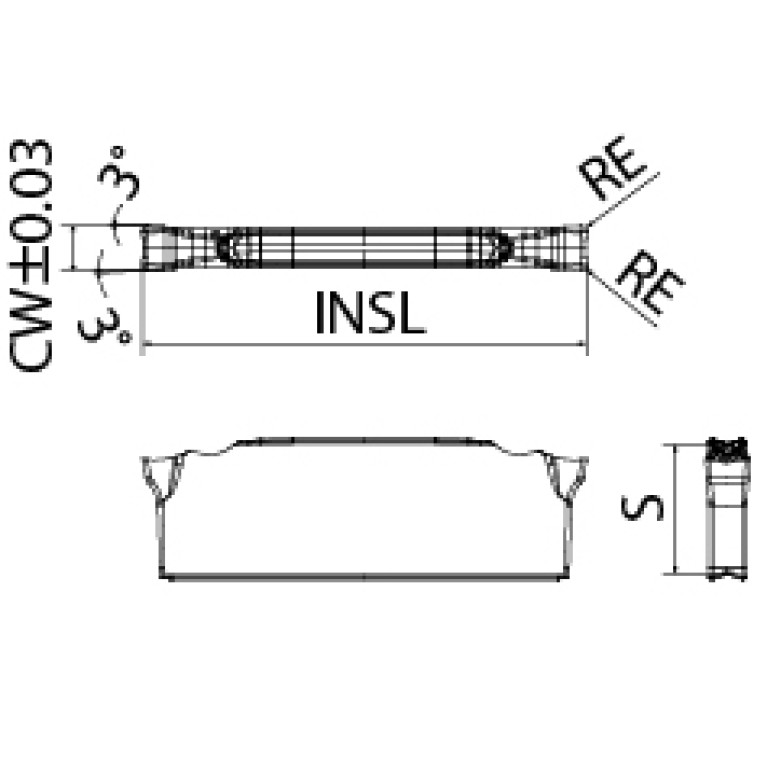

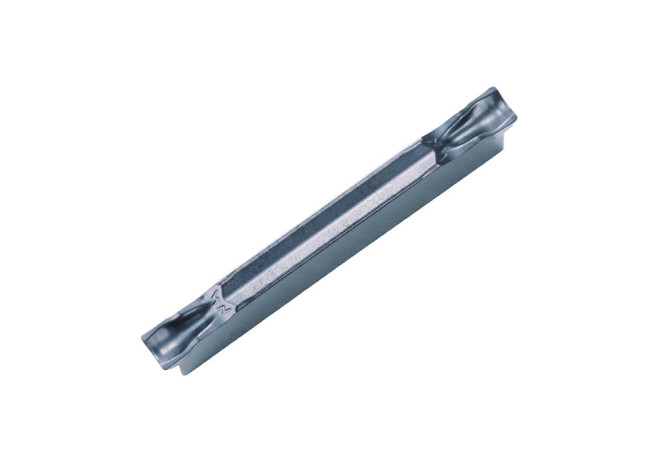

GZM2520N-020PM PR2035

Артикул: TLZ00017

В наличии

В корзину

Описание

Характеристики

ANL Clearance angle flank left hand

4 Degree

ANR Clearance angle flank right hand

4 Degree

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

MEGACOAT NANO EX

COMPC Company code

KYO - Kyocera

CW Cutting width

2.5 mm

Delivery state valid from

4/1/2024

DIN

KYO-GZ2520

EPSR Insert included angle

90 Degree

FamilyProducts

Inserts for Cut-off Tool for Automatic Lathe KGZ

GRDMFG Grade manufacturers designation

PR2035

GRDPRIO Standard designation of the grade main application

ID Technical product number

TLZ00017

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

20 mm

Interface codes

J6 /

ISYC Subclass

202-04 - Insert, two cutting edges for parting, self clamping

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KYO-GZ2520

Materials

P,M

Name Identifying order number

GZM2520N-020PM PR2035

NOF Flute count

PFS Profile form

REL Corner radius left hand

0.2 mm

RER Corner radius right hand

0.2 mm

S Insert thickness

5.5 mm

S1 Insert thickness total

6.45 mm

W1 Insert width

2.1 mm

Working process

No working processes available

Главный задний угол (AN) / Clearance angle major (AN)

10 Degree
