Главная Каталог продукции Toolunited 13 202-04 - Insert, two cutting edges for parting, self clamping GZG2520N-005PG PDL025

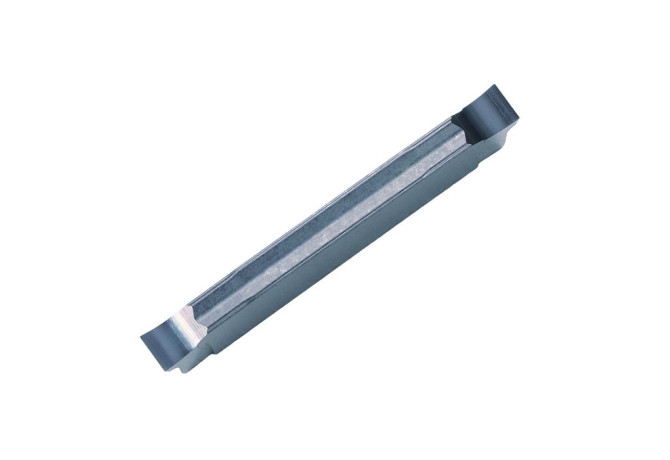

GZG2520N-005PG PDL025

Артикул: TLE16266

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

10 Degree

ANL Clearance angle flank left hand

2.5 Degree

ANR Clearance angle flank right hand

2.5 Degree

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

DLC Coated Carbide

COMPC Company code

KYO - Kyocera

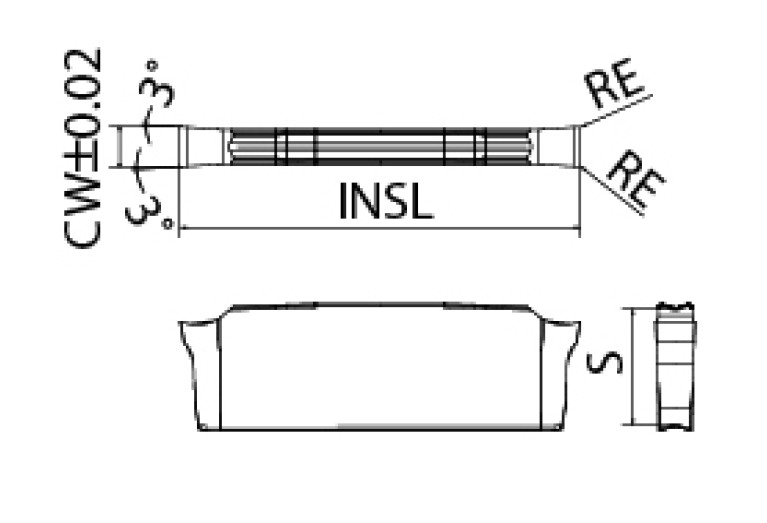

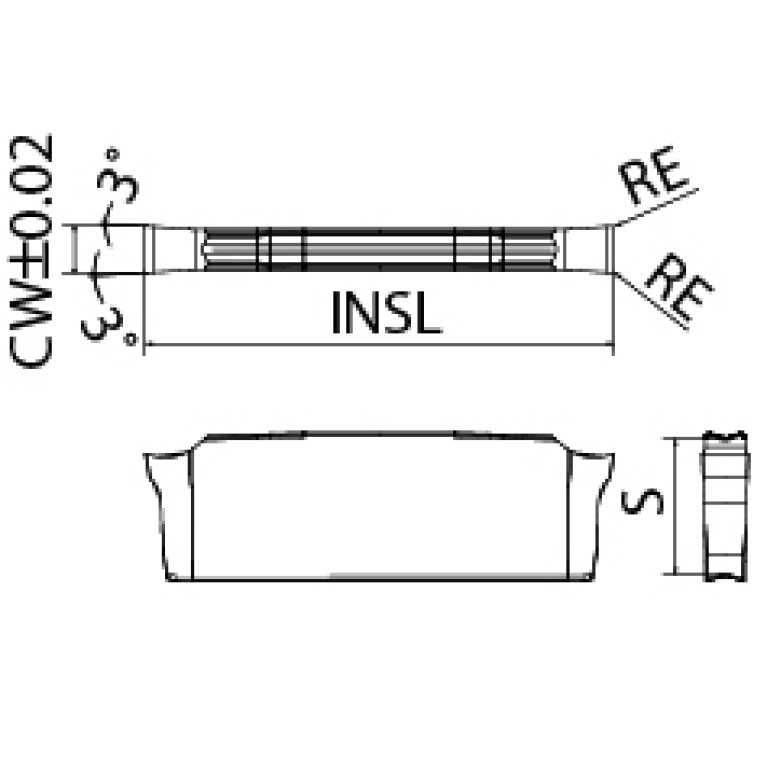

CW Cutting width

2.5 mm

Delivery state valid from

4/1/2024

DIN

KYO-GZ2520

EPSR Insert included angle

90 Degree

FamilyProducts

Inserts for Cut-off Tool for Automatic Lathe KGZ

GRDMFG Grade manufacturers designation

PDL025

GRDPRIO Standard designation of the grade main application

ID Technical product number

TLE16266

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

20 mm

Interface codes

J6 /

ISYC Subclass

202-04 - Insert, two cutting edges for parting, self clamping

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KYO-GZ2520

Materials

Name Identifying order number

GZG2520N-005PG PDL025

NOF Flute count

PFS Profile form

REL Corner radius left hand

0.05 mm

RER Corner radius right hand

0.05 mm

S Insert thickness

5.5 mm

S1 Insert thickness total

6.45 mm

W1 Insert width

2.1 mm

Working process

No working processes available
