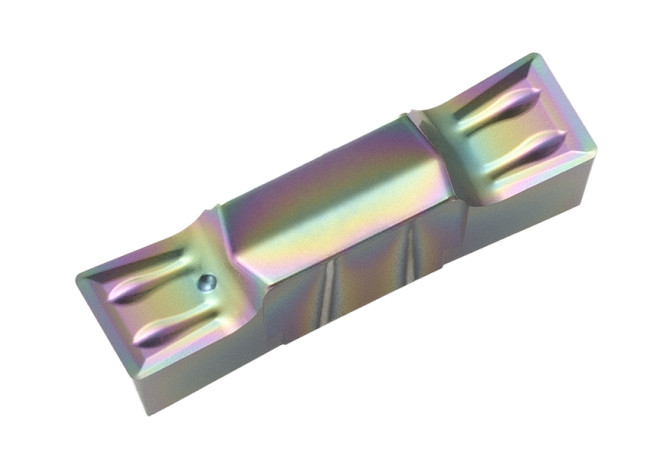

Главная Каталог продукции Toolunited 13 202-04 - Insert, two cutting edges for parting, self clamping GDG3020N-020AM GW15

GDG3020N-020AM GW15

Артикул: TWF18621

В наличии

В корзину

Описание

Характеристики

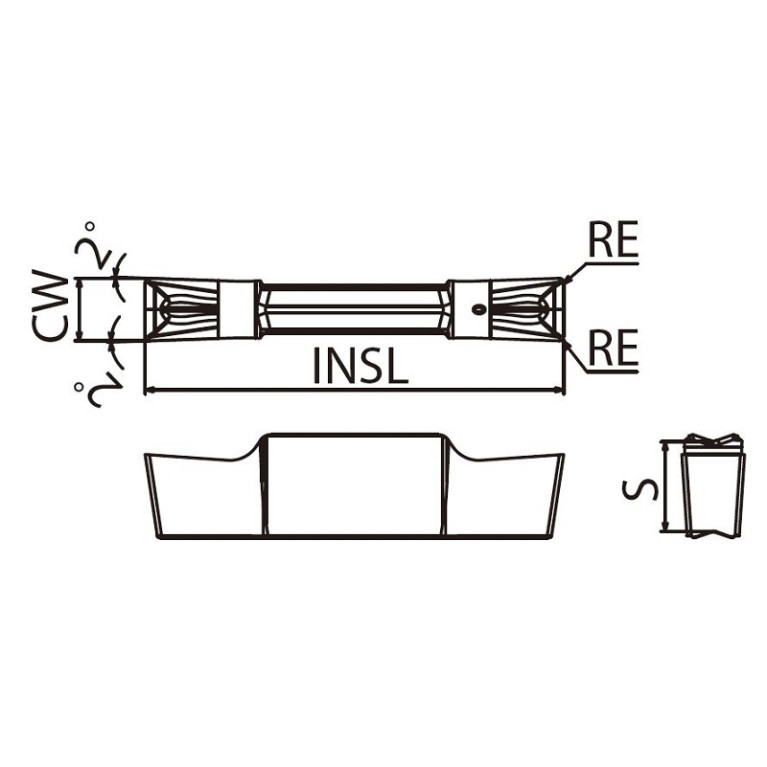

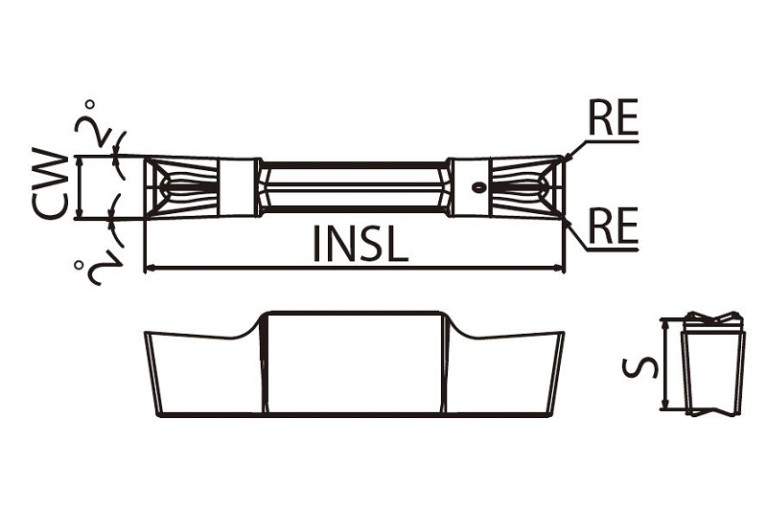

AN Clearance angle major

8.5 Degree

ANL Clearance angle flank left hand

2 Degree

ANR Clearance angle flank right hand

2 Degree

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

KYO - Kyocera

CW Cutting width

3 mm

Delivery state valid from

4/1/2024

DIN

KYO-GD3020

FamilyProducts

Inserts for Grooving GDG

GRDMFG Grade manufacturers designation

GW15

GRDPRIO Standard designation of the grade main application

ID Technical product number

TWF18621

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

INSL Insert length

20 mm

Interface codes

J6 /

ISYC Subclass

202-04 - Insert, two cutting edges for parting, self clamping

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

KYO-GD3020

Materials

Name Identifying order number

GDG3020N-020AM GW15

NOF Flute count

PFS Profile form

REL Corner radius left hand

0.2 mm

RER Corner radius right hand

0.2 mm

S Insert thickness

3.99 mm

S1 Insert thickness total

4.94 mm

W1 Insert width

2.3 mm

Working process

No working processes available
