Главная Каталог продукции Toolunited 13 309-09 - System tool for internal turning KAVH40-STLPL16

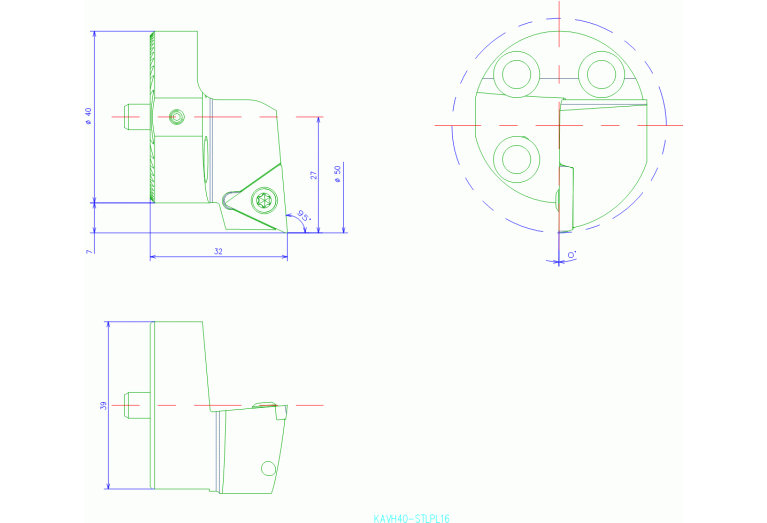

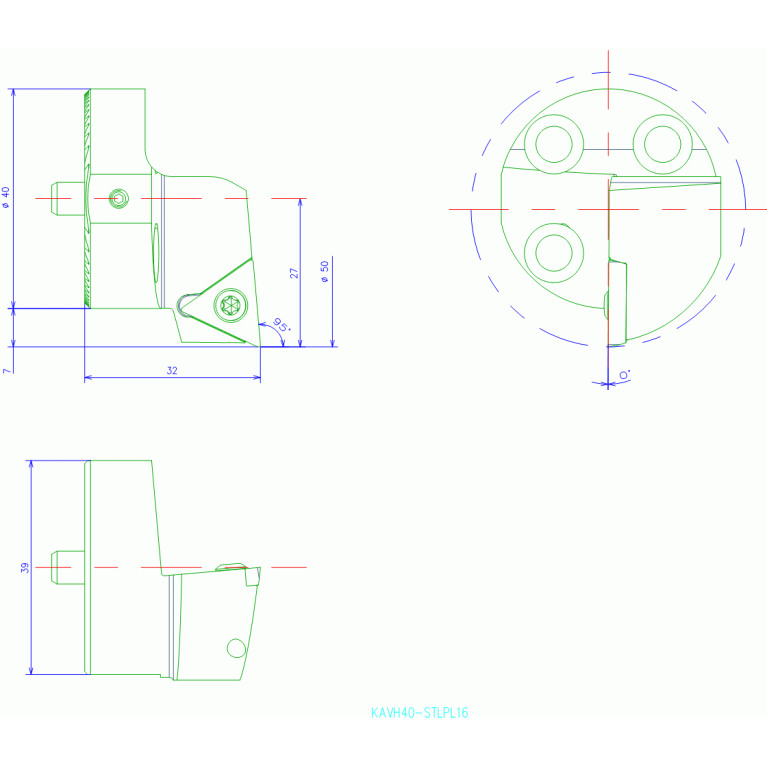

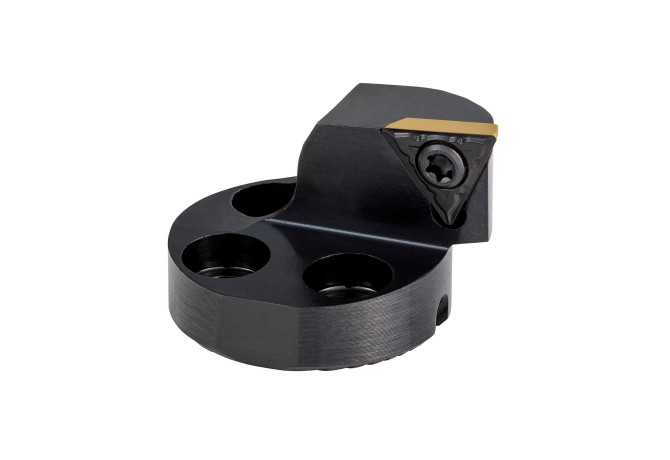

KAVH40-STLPL16

KAVH40-STLPL16 KAVH40-STLPL16 KAVH40-STLPL16 KAVH40-STLPL16

KAVH40-STLPL16

Kyocera
Артикул: THC15320
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
11 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BDRED Body diameter reduced
40 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
3.18 mm
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
D1A Corner radius Pos. A
0.4 mm
DCC Design configuration style code
A - Solid steel, with internal coolant supply
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2024
DIN
CMS04000197
DIN CSW1
TP1603044R

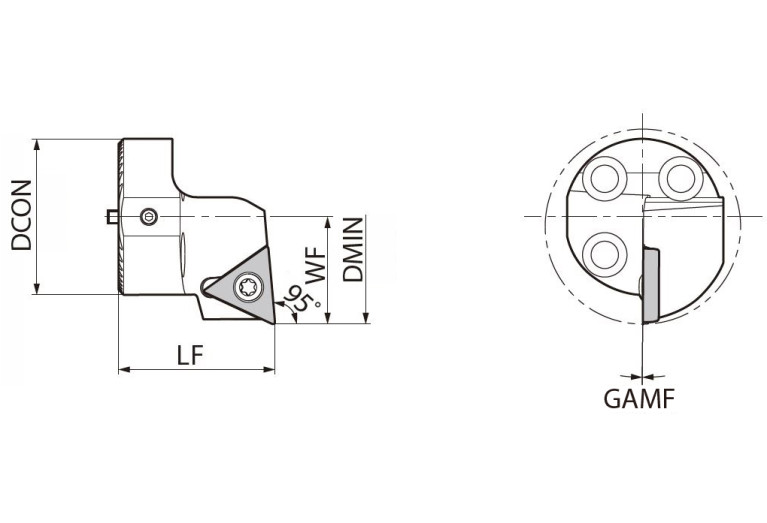

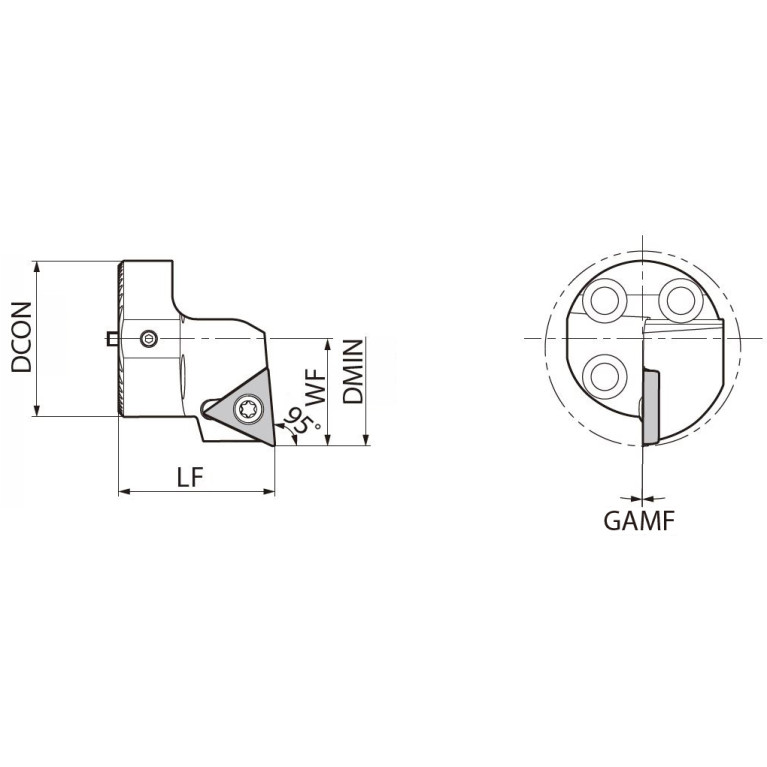

DMIN Minimum bore diameter
50 mm
END KAPP End chamfer
1
END KAPP ANGLE Kappungswinkel
30 Degree
END KAPP DIST End chamfer distance
1.5 mm
EPSR Insert included angle
60 Degree
FamilyProducts
Anti-vibration interchangeable head mechanism Boring Bar Head KAVH
GAMO Rake angle orthogonal
5 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
THC15320
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
95 Degree
L Cutting edge length
16.498 mm
LAMS Inclination angle
0 Degree
LF Functional length
32 mm
LH Head length
19.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
7 Serrated connection
LOC-03 CCTMS Connection code type
CMS Coromant Modular boring SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CMS04000197
LPR Protruding length
32 mm
LTA Length tool assembly
32 mm
MIID Master insert identification
TPGB160304
Name Identifying order number
KAVH40-STLPL16
OAL Overall length
40 mm
THSC Tool holder shape code
A - offset shank design
WF Functional width
27 mm
Working process
DDB - External and internal turning,DDI - Internal turning
WT Weight of item
0.153 kg
