Главная Каталог продукции Toolunited 13 309-09 - System tool for internal turning KAVH40-PDUNR15

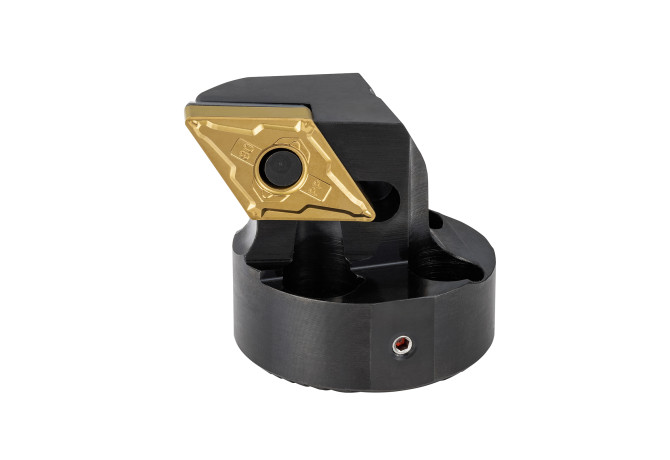

KAVH40-PDUNR15

KAVH40-PDUNR15

Kyocera

Артикул: THC15325

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

12.7 mm

BDRED Body diameter reduced

40 mm

BLDA Tool style code Position A

3

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

KYO - Kyocera

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

DCC Design configuration style code

A - Solid steel, with internal coolant supply

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2024

DIN

CMS04000197

DIN CSW1

DN1504082R

DMIN Minimum bore diameter

50 mm

END KAPP End chamfer

1

END KAPP ANGLE Kappungswinkel

30 Degree

END KAPP DIST End chamfer distance

3.3 mm

EPSR Insert included angle

55 Degree

FamilyProducts

Anti-vibration interchangeable head mechanism Boring Bar Head KAVH

GAMO Rake angle orthogonal

-6 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

THC15325

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

1

ISYC Subclass

309-09 - System tool for internal turning

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

15.504 mm

LAMS Inclination angle

-13 Degree

LF Functional length

32 mm

LH Head length

19.5 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

7 Serrated connection

LOC-03 CCTMS Connection code type

CMS Coromant Modular boring SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS04000197

LPR Protruding length

32 mm

LTA Length tool assembly

32 mm

MIID Master insert identification

DNMG150408

Name Identifying order number

KAVH40-PDUNR15

OAL Overall length

40 mm

THSC Tool holder shape code

A - offset shank design

WF Functional width

27 mm

Working process

DDB - External and internal turning,DDI - Internal turning

WT Weight of item

0.154 kg
