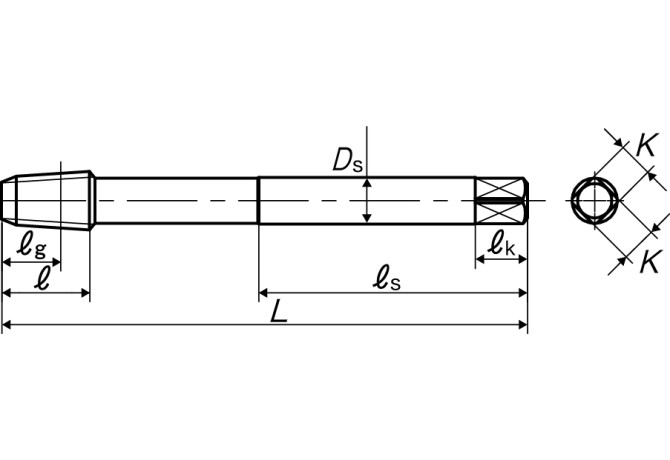

TJRC020DPX

Артикул: TJRC020DPX

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

Oxidizing

COMPC Company code

YMW - Yamawa

CXSC Coolant exit style code

0 - Without coolant exit

Delivery state valid from

10/1/2024

DIN

ZYL00802105

DRVS Drive size

6 mm

FamilyProducts

PMST OX Rc(PT)1/8-28

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GRDPRIO Standard designation of the grade main application

HSS-P

HAND Cutting direction

R - Right

ID Identifying order number

TJRC020DPX

Interface codes

J6 / J61

ISYC Subclass

301-00 - Thread cutting tap, forming tap, cutting die unspecified

LCF Length chip flute

24 mm

LDC Distance reference point PK

7.832 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Tolerance class coded

h$08

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00802105

LS Shank length

46 mm

Materials

P,N,H

NOF Flute count

OAL Overall length

90 mm

OVERHANG LENGTH Overhang length

48.6 mm

PLCD Gate diameter

7.7 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

JIS

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2.268 mm

TD Thread diameter

9.728 mm

TDFR Thread diameter nominal fraction

1/8 in

TG Taper ratio

1:16

THFT Thread form type

THL Thread cutting part length

15 mm

THOD Thread designation

Rc1/8-28-

TPI Threads per inch

28 1/in

TTPID Tap type identifier

1 - Machine tap

Working process

BG - Tapping

WT Weight of item

0.036 kg
