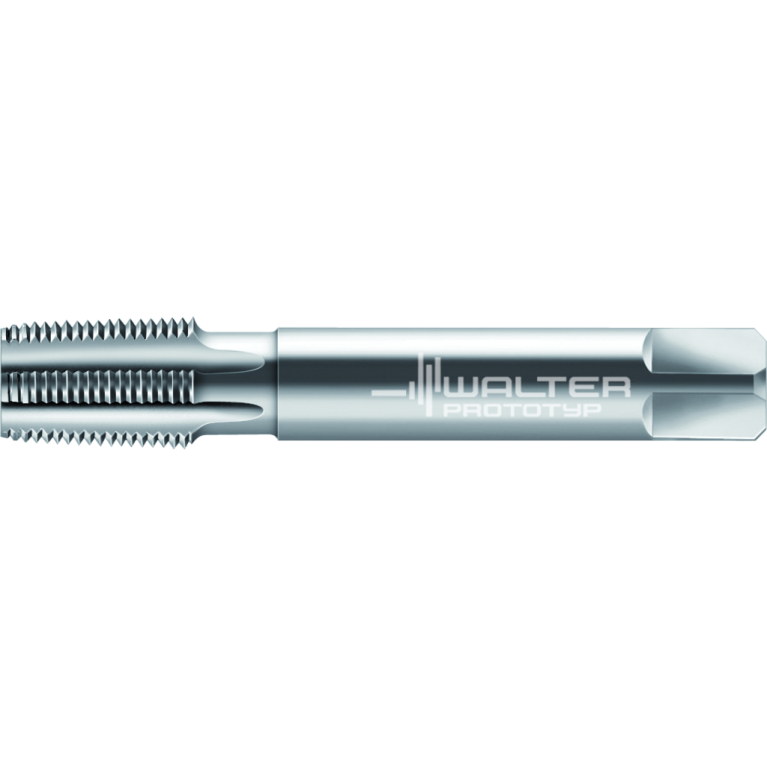

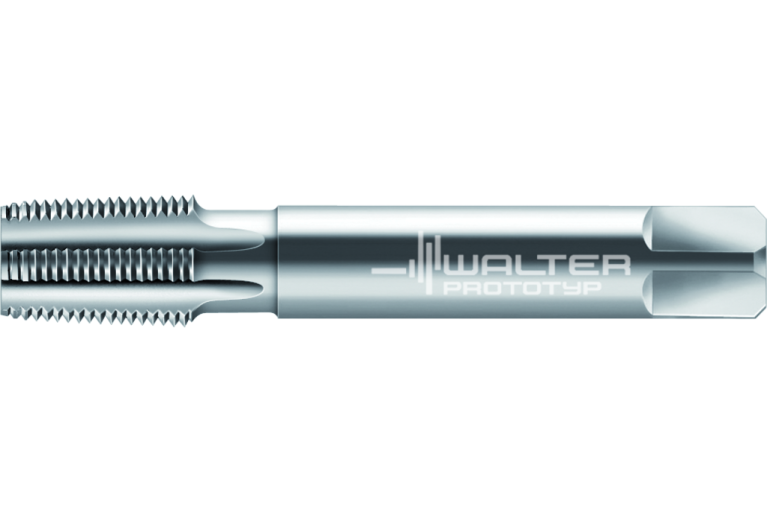

Главная Каталог продукции Toolunited 13 301-00 - Thread cutting tap, forming tap, cutting die unspecified 25167-NPT1/4

25167-NPT1/4

25167-NPT1/4 25167-NPT1/4 25167-NPT1/4

25167-NPT1/4

Walter
Артикул: 5078947
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
ohne
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL01402105
DN Neck diameter
13.2 mm
FamilyProducts
HSS-E machine taps
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
ID Technical product number
5078947
Interface codes
J6 / J61
ISO
ZYL21G1400h$09
ISYC Subclass
301-00 - Thread cutting tap, forming tap, cutting die unspecified
LOC-03 CCFMS Form
21
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0140
LOC-03 DCONMS Diameter
14 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$09
LOC-03 ISO
ZYL21G1400h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01402105
LS Shank length
33 mm
Materials
K,N,O
Name Identifying order number
25167-NPT1/4
NOF Flute count
3
OAL Overall length
100 mm
PLCD Gate diameter
10.9 mm
PLG Plug style
C - Kappa r 15°
STDNO Standard
PWZ-NORM
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
4.23 mm
TCTR Thread tolerance class
NORMAL
TDFR Thread diameter nominal fraction
1/4 in
TDIN Thread diameter nominal inch
0.5265 in
TG Taper ratio
1:16
THFT Thread form type
NPT
THL Thread cutting part length
20 mm
THOD Thread designation
NPT1/4-18-NORMAL
TPI Threads per inch
18 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
EGI - Threading, internal
WT Weight of item
0.1 kg
