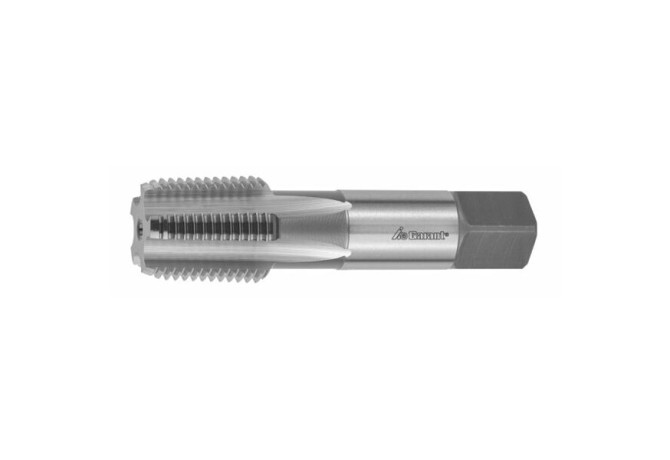

Главная Каталог продукции Toolunited 13 301-00 - Thread cutting tap, forming tap, cutting die unspecified 138120 1/8-28

138120 1/8-28

138120 1/8-28 138120 1/8-28 138120 1/8-28

138120 1/8-28

Hoffmann Group
Артикул: 138120 1/8-28
В наличии
В корзину
Описание
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/11/2017
DIN
ZYL00702105
FamilyProducts
GARANT Machine tap
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSSE
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-00 - Thread cutting tap, forming tap, cutting die unspecified
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0070
LOC-03 DCONMS Diameter
7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105

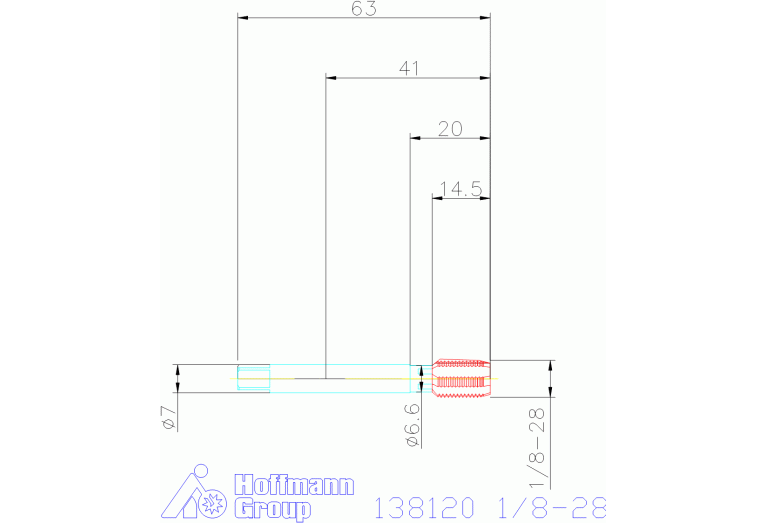

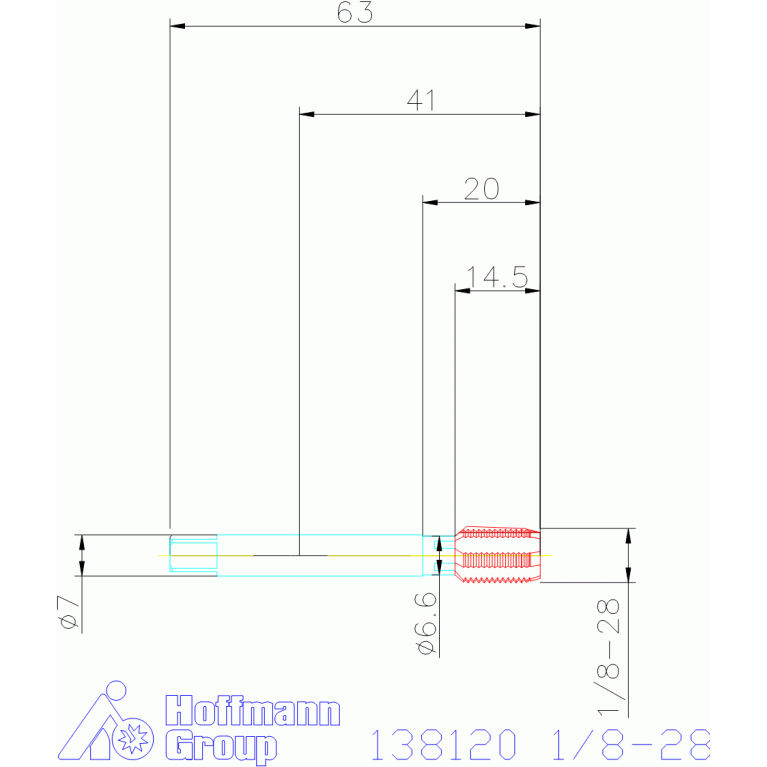

LS Shank length
43 mm
Name Identifying order number
138120 1/8-28
NOF Flute count
5
OAL Overall length
63 mm
PLCD Gate diameter
7.8 mm
PLG Plug style
C - Kappa r 15°
TCL Tap chamfer length
2.7 mm
TCTR Thread tolerance class
ISO 7-1
TD Thread diameter
9.2 mm
TDFR Thread diameter nominal fraction
1/8 in
TG Taper ratio
1:16
THFT Thread form type
BSPT
THL Thread cutting part length
14.5 mm
THOD Thread designation
BSPT1/8-28-ISO 7-1
TPI Threads per inch
28 1/in
Working process
BG - Tapping
WT Weight of item
0.026 kg
